Among the many fields benefiting from medical implants to aerospace components, a very special material is finding its way into modern engineering: Ultra-High-Molecular-Weight Polyethylene (UHMWPE). It is a very powerful, long-lasting-biting, and self-lubricating combination of properties that makes it an essential component in a number of high-stakes industries.
This detailed study will look into the qualities of UHMWPE, the stages of its production and its use in many different sectors. The material will be put through a test by having its mechanical, thermal, and chemical properties looked at, and at the same time we will see the impact of new materials like carbon fiber on its performance. To material scientists, engineers, makers, and designers, knowing UHMWPE is the only way to open up the new world of materials technologies and explore and materialize their ideas to the full potential.

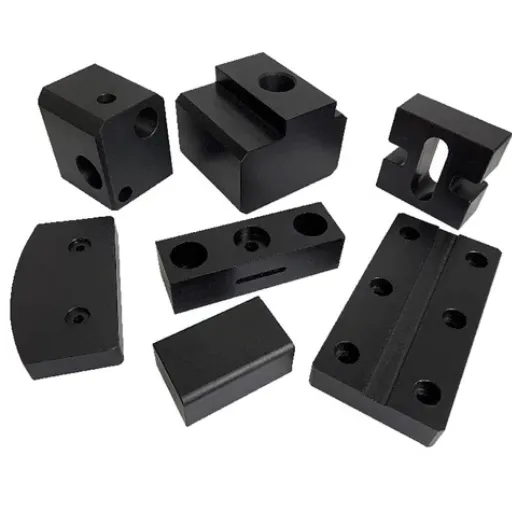

Understanding UHMWPE
What Is Ultra-High-Molecular-Weight Polyethylene?
UHMWPE stands for Ultra-high-molecular-weight polyethylene, it is a type of polyethylene plastic that is thermoplastic and has a super extended molecular chain. Regular high-density polyethylene (HDPE) has a molecular weight that is between 100,00 and 500,000 g/mol, but UHMWPE boasts molecular weight that goes up to 3.5 and 7.5 million g/mol. The long chains are what make the material both tough and wear-resistant at the same time.
The long molecules are highly efficient in transferring the load and this is done by means of being up a strengthening of intermolecular interactions. This forms a very sturdy material and a hard to crack material that resists pressure, even at low temperatures. Additionally, the crystal structure of UHMWPE is responsible for its low coefficient of friction, and in effect, it is also a self-lubricant material that is perfect for applications requiring the smooth and silent running of a machine with very little wear issue.
History and Development of UHMWPE
It was not until the 1950s that high-density polyethylene could be made due to the development of Karl Ziegler’s catalysis process, a process that was revolutionary in the history of plastic creation. This is when Ruhrchemie AG from Germany was nex able to invent and then patent a process to make UHMWPE.
They were first used in the industrial sector, but the medical field quickly realized their benefits in terms of biocompatibility and durability. Sir John Charnley was the pioneer in the utilization of UHMWPE for the bearing in total hip replacement in the 1960s and this event completely changed Orthopedic Surgery and still remains a standard practice of today.
Comparing Other Polyethylenes with Different Molecular Weights
The physical characteristics are the main factors that the molecular weight of polyethylene affects. Let’s briefly compare and understand:
Low-Density Polyethylene (LDPE): If a plastic bag or film is what you want, use this one since it has a low molecular weight and a branched structure which renders it flexible and perfectly suited for the purpose.
High-Density Polyethylene (HDPE): Opposed to LDPE, HDPE is said to have a much more rigid and strong character due to the higher molecular weight and linear structure on offer. Items such as bottles, pipes, and containers are commonly made from this material.
Ultra-High-Molecular-Weight Polyethylene (UHMWPE): It is the polyethylene with the longest linear chains in terms of its molecular weight, and thus UHMWPE excels the others in terms of being able to get very big tensile impact, abrasion resistance as well as low friction coefficient altogether.
Among the three, UHMWPE needs special care and technology apart from the conventional routs of processing before it can give its contribution in the industrial market; whereas LDPE and HDPE seem to be severity-free and simply subject to melting for injection molding and blow molding.

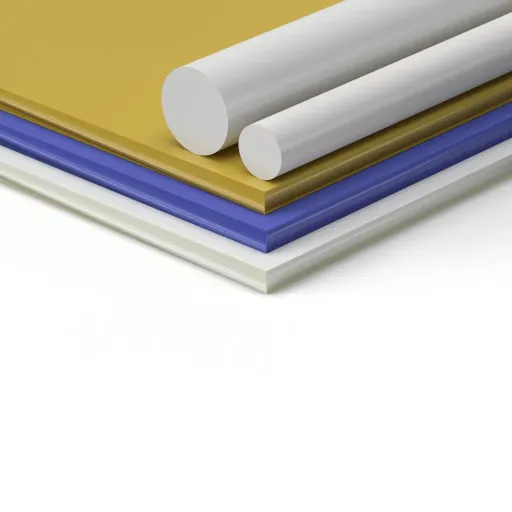

Material Properties of UHMWPE
Mechanical Properties and Strength
UHMWPE is recognized for its exceptional mechanical properties. It holds the title for the highest impact strength in the market of thermoplastics and is therefore declared extremely durable. The decisive factor in this behavior is the energy absorption provided by the polymer’s long chains.
The list of the properties that are most essential is as follows:
- High Abrasion Resistance: This material is fifteen times more resistant to abrasion than carbon steel, making it very suitable for many kinds of parts (wear pads, chute linings, conveyor components) where wear is a factor.
- Exceptional Impact Strength: It can take significant impacts and yet show no fracture, even under cryogenic conditions.
- High Tensile Strength: The material is not as hard as some metals are, but it offers good tensile strength which makes it tough to tear it apart.
- Low Coefficient of Friction: The “slippery” surface of the material could be compared to that of PTFE (Teflon) and at the same time will minimize the wear and tear of the parts and the power consumption.
Thermal and Chemical Resistance
UHMWPE is both highly reliable and quite versatile when it comes to operating at different temperatures. Its functional temperature range is quite large, from approximately -150°C to 90°C (-240°F to 194°F). At the same time, it is able to preserve its impact strength at the lowest end of that range, which is not a feature common in many plastics. But, the downside is its softening or melting point is low at around 130-136°C, making it inappropriate for the high-temperature applications.
UHMWPE is very tough chemically and does not react with a number of aggressive chemicals, so it is resistant to most acids, alkalis, and organic solvents. This resistance is one of the reasons it is a valuable material for chemical processing plant components and containers for aggressive substances. Also, it has a very low moisture absorption, making it a very stable material in wet environments.
Polymers with excellent long life and cost are UHMWPE
Its self-lubricating nature makes UHMWPE one of the most significant benefits. The material boasts an extremely low friction coefficient which in turn means that only in some mechanical applications is the use of external lubricants necessary. With this property, maintenance costs go down, energy consumption gets minimized, and at the same time, the prevention of lubricant contamination is ensured. This is especially significant in the food processing and medical industries. It is actually the molecular structure that is the reason of this self-lubricating character mentioned above. In this structure, the smooth and long-chain molecules slip past each other and have no barriers to do so.

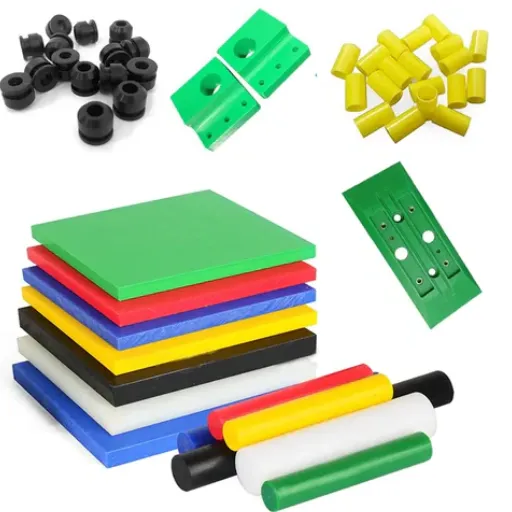

Applications of UHMWPE in Modern Engineering
Using the Medical Field
When used in the medical field, ultra-high-molecular-weight polyethylene (UHMWPE) typically becomes the primary choice for orthopedic implants. In short, the material is characterized by being biocompatible, having very low friction as well as being highly wear-resistant which is why it is the best option for the bearing surfaces of total joint replacements, especially in the hips, knees, and shoulder areas. The material has for many years made it possible for millions of patients to recover their normal physical activities and stop feeling pain. One of the main factors that have contributed to its constant use is the continued improvement of patient functional outcome through harder bearings such as increased wear resistance either through oxidation or irradiation.
Aerospace and Automotive Industries
Both aerospace and automotive industries are at a great advantage as they can make use of UHMWPE, a durable and light yet tough material, which is the main strength of the substance. There are many areas in the aerospace industry that need the light weight of UHMWPE such as those in the cabin of the airplanes for the interior of the cabin with added resistance to cuts for the cargo hold, floors, and even lining the passenger seats and checking it for possible wear and tear although it also has many other areas of use thus making it the choice for materials in aircraft construction industry. The material is also a great help in terms of the performance and fuel efficiency of the vehicle.
In gear manufacturing, Gears racks, bearings, and wear strips are the most common locations that demand very low friction and high durability, all of which are the characteristics of the material under investigation. At the same time, its resistance to chemicals and impact makes it excellent for other various under-the-hood components as well.
Contribution to Industrial Manufacturing and Robotics
UHMWPE has a special position among materials used in the industry. It is a substance of choice for the production of pieces like chutes, hoppers, and truck beds since it is used to eliminate the wear and tearing of the material used thus allowing them to move smoothly and stick-free, Besides, unlike many other materials, this material is tough and does not get easily damaged. There have also been applications where UHMWPE has been used to make the above-mentioned under-the-hood components. The self-lubricating properties and the smooth and quiet operation of UHMWPE are the major advantages it offers when it comes to these applications.

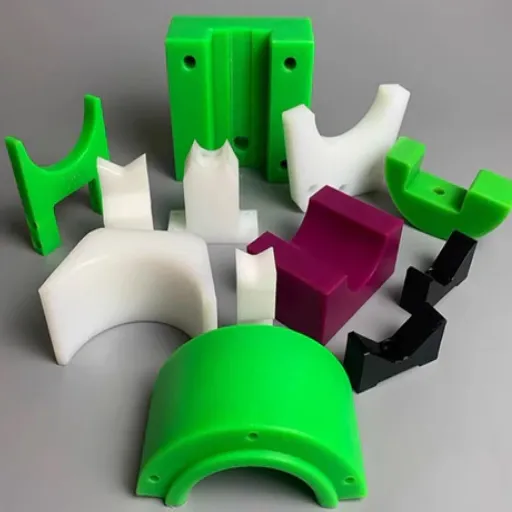

Innovations and Enhancements in UHMWPE
The Impact of Carbon Fiber Reinforcement
Carbon fiber reinforcement turned UHMWPE into a stiffer, more tensile and dimensional-stable composite. The standard UHMWPE, known for its ductility, is transformed into a rigid material with carbon fiber admixture, thereby widening the application to places where at-risk deflection must be taken into account. In addition to this, the new composite still maintains and exhibits the low friction and wear resistance nature of UHMWPE while incorporating the strength and stiffness aspects of the carbon fiber.
Effects of Irradiation on UHMWPE Properties
UHMWPE, or Ultra High Molecular Weight Polyethylene, is a type of polymer that is frequently treated in the medical field by the use of gamma or electron beam radiation. This treatment process, which is referred to as cross-linking, establishes the presence of links between the molecular chains. As a result, the wear resistance of the cross-linked UHMWPE (XLPE) is greatly improved and therefore, it becomes a necessity for the lifespan of joint implants to be extended. Nevertheless, the process is capacitated by slightly diminishing the material’s fatigue resistance and hence manufacturers are required to adjust their degree of cross-linking very carefully so that the overall performance is optimized.
Future Trends in UHMWPE Development
The future of UHMWPE looks rosy indeed. Besides the possibility of vast property enhancements through the use of new additives and fillers, the researchers also consider the introduction of nanocomposites, which are made of such nanoparticles as graphene or carbon nanotubes, that can be used as materials with unparalleled strength and the electrical conductivity of which is the best. Moreover, it is very likely that the progress in 3D printing technology for UHMWPE will soon accommodate the rapid prototyping and manufacturing of intricate unique parts as well as result in a significant increase in design opportunities.

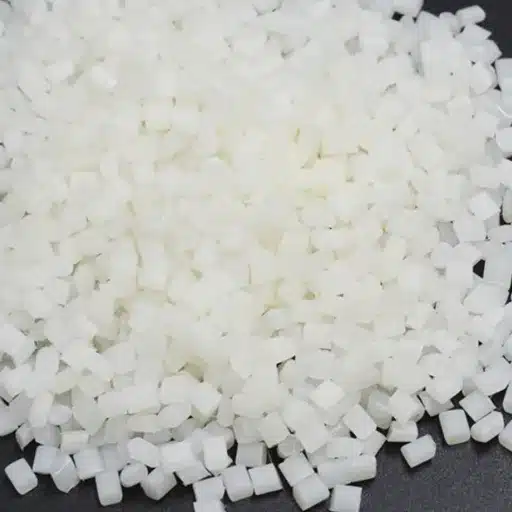

Challenges and Considerations in Using UHMWPE
Processing Challenges and Solutions
The high molecular weight and high melt viscosity caused by UHMWPE were seen as factors that would exclude it from adoption by the existing thermoplastic processing techniques such as injection molding. In contrast, within the standard practice of UHMWPE processing, compression molding, ram extrusion, or hot isostatic pressing are used. These synthetic ways are being recognized as slower and more energy-consuming, thus more costly. Machining the UHMWPE will also require a lot of attention given that its low thermal conductivity may result in heat accumulation which, without the use of sharp tools and the right speeds, can lead to the material becoming molten.
Environmental Impact and Sustainability
UHMWPE, similar to some other petro-plastics, is non-biodegradable. Nonetheless, it has a very good performance which leads to long service life and less frequent replacement of the components made of it, thus reducing the need for materials and waste. Although recycling UHMWPE requires a lot of effort due to the contamination and reprocessing problems, people are already working on the establishment of more rigid and useful recycling pathways and at the same time on the exploration of the bio-based sources to make the production of polyethylene ecologically (literally, ‘in harmony with nature’) more sustainable.
Cautions Regarding Cost for Producers
UHMWPE’s base material cost is more than that of normal poly-ethylenes and a lot of other plastics found in everyday life. When we talk about the specific and slower ways needed for its processing, the ultimate cost to make a UHMWPE part can be quite large. Nonetheless, for a great number of applications, it is evident that the pay-back period when using a product with good strength and durability coupled with minimal maintenance and long service life, justifies the initial investment. Click here to read more.
Reference Sources
Understanding the Fundamental Properties of UHMWPE
Understanding UHMWPE Properties: A Quick Guide
Frequently Asked Questions (FAQs)
What chemical and mechanical properties are characteristic of metal composites?
Metals are easily susceptible to corrosion, deformation and fatigue with or without any effect of environmental exposure. They, therefore, require constant maintenance to keep them fit for use. However, when used in a reinforced form with composites, like metal matrix composites (MMCs), the weight and cost can be remarkably decreased while at the same time, improved infrastructure performance is realized. Following this rationale, the use of metal matrix composites is very promising in the metal industry. The high stiffness and strength of ceramics config within the matrix of the metal making the material very stiff without adding much to the weight. Also, the coefficient of thermal expansion of ceramics will counteract the expansion of the metal during heating. The ceramic fibers will also provide strength across the plane of the material thus making the material very strong in tension as well as light. Metal matrix composites are not only restricted to the use of ceramics as reinforcements but it is also possible to utilize fibers, which are made of glass or carbon, particles, etc. for the same purpose. Particulates are used mainly to increase the stiffness of the metal matrix. They are very small and therefore, occupy the space within the metal and to great extent help to make the material stiffer. On the other hand, fibers help the material to carry better loads in the longitudinal direction and make it stiff. The use of these metal composite materials has advantages such as improving the ductility and avoiding the negative thermal and moving effects that are usually present in the pure metal parts.
How does ultra high molecular weight polyethylene perform in industrial applications?
Ultra high molecular weight polyethylene (UHMWPE) is highly effective in industrial applications particularly due to its high resistance to abrasion and links with the wear-resistant properties, hence its frequent selection for the liners, chain guides, and the wear-resistant plastic parts. The low coefficient of friction as well as the self-lubricating characteristics of the material make the conveyor systems and heavy-wear environment systems to become greaseless and having very long life as well. Due to the UHMWPE reinforced by the carbon fiber and carbon nanotubes, the composites are majorly characterized by sweetness and high strength, with the improved impact strength remaining at the top. UHMWPE that is of medical grade, somewhat irradiated, or hyper-cross-linked have Grades made for particular applications such as total hip replacements and total joint arthroplasty where the performance of the bearing material plays an important role. The purging of the material and low water uptake that can additionally undergo annealing also occur as two of the features which assist the material in maintaining its size under various service conditions.
Why is UHMWPE considered a thermoplastic and how does that affect processing?
What is UHMWPE? UHMWPE is a thermoplastic polymer that can be melted and reshaped without a significant change in its chemical structure, although the high molecular weight of it makes conventional melt processing very difficult. The processing methods usually include ram extrusion, compression molding, or simply processing it as UHMWPE powder that consolidates under heat and pressure. The reason for the latter is the presence of long polymer chains and high molecular weight, which require the use of specialized techniques. The thermoplastic nature of these polymers implies the possibility of their recycling and reworking in certain applications, but obtaining good consolidation may need anneal steps and precision temperature control to keep the molecular orientation and crystallinity level untouched. Sometimes the UHMWPE matrix is loaded with material and consequently, the prepared composite can be a material with other materials like carbon fiber that reinforce and fill the UHMWPE matrix material to increase stiffness and tensile properties of the original polymer yet keeping the high wear resistance. The understanding of the polymer chains and intermolecular forces assists the polymer engineering team to process the polymer for achieving the desired properties such as toughness and elongation at break as these properties are the most valued in the targeted application(s).
Can you explain how the properties of ultra-high-molecular-weight polyethylene are modified by irradiation or crosslinking?
Irradiation and cross-linking are widespread techniques used to alter UHMWPE for maintenance purposes and reduced particle formation in biomedical implants, particularly for UHMWPE used in hip and total joint replacements. Highly cross-linked UHMWPE usually shows better wear resistance and lower friction coefficient; however, cross-linking may lead to a decrease in elongation at break and some aspects of impact strength if no follow-up actions, such as annealing or remelting, are done. Irradiated UHMWPE can be more susceptible to oxidative degradation, so it may require stabilization; the wear resistance vs. long term stability dilemma is often solved by including antioxidants or moderate irradiation in medical-grade UHMWPE formulations. Filled or reinforced UHMWPE composites can not only exploit the benefits of cross-linking but also obtain high tensile properties due to the added fibers or carbon reinforcement, making the new bearing materials more durable also. These changes in topology are clear indicators of the pros and cons in the wear-resistance, toughness, and molecular weight perspectives for the new design.
Can polyethylene uhmwpe replace PTFE or HDPE in low-friction applications?
UHMWPE-Ultra-high molecular weight polyethylene (UHMWPE), in many low-friction and wear-critical applications, is commonly suggested to be the appropriate substitute for PTFE (polytetrafluoroethylene) and HDPE, as it has a great balance of properties- low friction, high toughness, large numbers of literature don’t mention the term. UHMWPE has generally a more significant effect strength and wears for when compared to PTFE and almost as a low coefficient of friction and self-lubrication of properties, and still, PTFE might be the best solution in the case of it being resistant to chemicals and temperatures. In the case of HDPE, UHMWPE has extremely high molecular weight and lots of improved wear resistance and tensile strength, which are factors that make UHMWPE perfect for heavy-duty plastic parts and bearings. Moreover, the UHMWPE molecular weight and PE fibers enable extremely the composites that have the low weight and high strength feature that is the reason for the making of range of industrial products. The required selection relies on the particular aspect like the need for the and the worry of wearing out along with other performance optimization requirements such as coatings or liners for the least.
