Having a comprehensive understanding of different types of nylon is essential for selecting the right material for your project. This is especially the case for strong, adaptable selections such as Nylon 66 and Nylon 12, whose applications span multiple industries. But what are the fundamental differences between the two, and which one is ideal for your specific requirements? This article provides answers by elucidating the central differences between Nylon 66 and Nylon 12, investigating their properties, uses, and advantages. Whichever field you belong to—manufacturing, engineering, or product design—this article aims to aid you in forming a precise evaluation. Let us figure out what you didn’t know about these types of nylon that appeared.

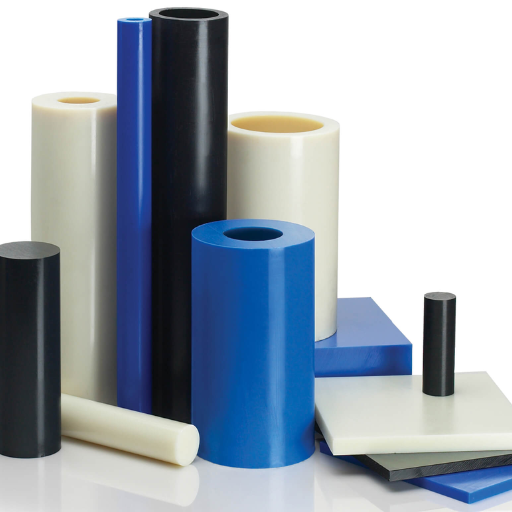

What Are the Key Properties of Nylon 66 and Nylon 12?
- Nylon 66:
- Exceptional strength and rigidity, making it appropriate for intense use cases.
- Very good heat resistance, permitting function within high temperature areas.
- Correct resistance to wear and tearing, guaranteeing sustained use over time.
-
Impact resistance is low when compared to several other materials.
- Nylon 12:
- Ideal for dynamic uses because of its unrivaled flexibility and impact resistance.
- Absorption of moisture is minimal, thus avoiding significant dimensional and property changes.
- Chemicals, oils, and fuels will not be damaging, making this material suitable for rough environments.
-
Compared to Nylon 66, it offers reduced strength and heat resistance.
Each material’s characteristics make it more appropriate for particular applications with different performance requirements.
Understanding the Properties of Nylon 66
Due to its mechanical strength and thermal stability, the material is used in numerous industries. Its most well-known variant is Nylon 66. Main characteristics include:
- High Tensile Strength: Due to its remarkable tensile strength, Nylon 66 is useful in high-stress conditions and in high-stress applications. This is important for items like gears, automotive parts, and components of industrial machines.
- Excellent Heat Resistance: Nylon 66, for instance, has a melting point of around 256°C(492.8°F) This makes it more overheating and high temperature resilient compared to other nylons. For this reason, it is used in engines and electric insulators.
- Low Friction and Wear Resistance: Due to its minimal surface wear resistance, the material greatly protects against frequent replacements in moving parts or components of mechanical structures.
- Good Chemical Resistance: The silicone hydrocarbons, solvents,and oils are only some of the many chemicals that it is resistant to. This greatly qualifies the use of Nylon 66 in challenging conditions.
- Moisture Absorption: Although, Nylon 66 only mildly absorbs moisture which affects its mechanical features, it performs effectively in relative humidity yeilding a good strength and flexibility balance.
Exploring the Properties of Nylon 12
Nylon 12 stands out from other fibers because of it retaining structural integrity under extreme environment’s, such as moisture, oils, and fuels exposure. It is classified as a semi-crystalline thermoplastic along with other defining features of having Nylon 12 being highly flexible, resistant to chemicals, absorbing little water, and more.
However, one of the defining features of Nylon 12 is having low density, therefore making it more lightweight compared to other nylon fibers, which are dense around 1.01 g/cm³. Because of these factors, weighing less than other nylon fibers greatly benefits tasks where weight allocation is crucial. Its moisture absorption rate is also incredibly low at 1.5 percent. Indicating dimensional stability. Along with these traits, Nylon 12 sustains impact resistance and retention of toughness at temperatures above and below 120°C and -40 °C, respectively.
Fuel Lines, Cable Sheathing, Connectors, Catheters, and Surgical Instruments: Nylon 12 is useful for the healthcare, electronics and automotive industries. Nylon 12’s claim to fame is its resistance to chemicals, pressure, and warping while also being highly durable and biocompatible. These perks allow it to be used in fuel lines, cable sheathing, 3D printing, and even medical-grade flexible catheters.
Nylon 12’s versatile features give it an edge over heavy, bulky or low-resistance materials, supporting the demands of multiple industries while fulfilling their complex specifications.
Comparing Polyamide 66 and 12
Both PA 66 and PA 12 share the common feature of being adaptable materials, yet possessing unique traits makes them appropriate for different areas. Polyamide 66, for instance, has quite a high tensile strength and stiffness in addition to high wear resistance, good thermal stability, and mechanical strength. PA 66’s melting point of approximately 255°C allows its use in high-temperature projects, automotive components, industrial components, and electronic parts. Wear Resistance and strength set it apart from peers, but its high moisture absorption compared to PA 12 means the material would have lower dimensional stability in moist environments.
In contrast to PA 66, PA 12 possesses higher flexibility, impact resistance, while taking on a significant weight reduction. Tubing, cable sheathing, sports equipment, and medical devices rely on PA 12’s lightweight toughness. In addition, the material is more stable for humid and wet environments due to a lower moisture absorption of 1.5%. Ease of processing PA 12 becomes a valuable asset, especially for 3D printing, where controlled temperatures are essential, as the material’s lower melting point of 179°C makes it easy to work with.
With regards to price, it’s evident that PA 12 is more expensive due to its applications and the lower quantities produced. On the other hand, PA 66 offers averagely good performance at a reasonable price, making it available for wider industrial use. Knowing these distinctions aid in selecting the right material for the intended purpose while factoring in the operational terms and financial limitations.

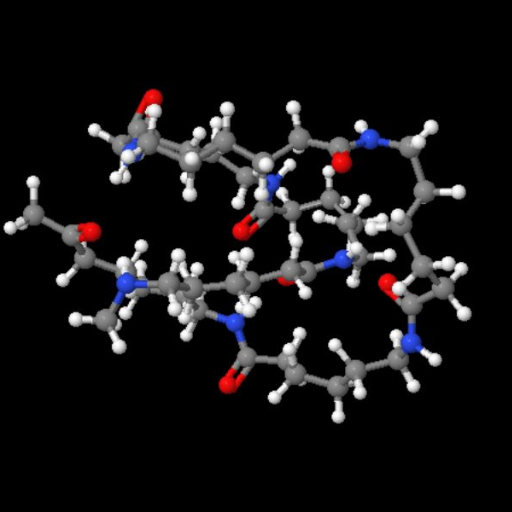

How Does the Chemical Resistance Differ Between Nylon 66 and Nylon 12?
Nylon 12 has a glue-like advantage over Nylon 66 in the area of chemical resistance, particularly with oils, fuels, and hydrocarbons. Though Okonene 66 is resistive to a lot of chemicals, it does have a vulnerability to degradation when exposed to strong acids and bases. Therefore, 12 is a sensible option for scenarios requiring extended exposure to harsh chemical conditions.
Assessing the Chemical Resistance of Nylon 66
Although Nylon 66 has good chemical resistance, its performance varies depending on environmental factors and the chemicals involved. Nylon 66 has particular resistance to hydrocarbons, ketones, and weak acids and bases; however, it fails to be resistant to strong acids like sulfuric acid and strong bases like sodium hydroxide.
Withstanding an organic solvent like hexane or benzene for long durations does not seem to affect the mechanical strength or dimensional stability of Nylon 66. A study, for example, indicates that Nylon 66 keeps about 85% of its tensile strength when subjected to these chemicals at room temperature for 72 hours. But if exposed to concentrated acids or strong alkalis, it suffers catastrophic molecular degradation, losing vast amounts of potential strength and durability. Nylon 66 is best suited for applications involving severe chemical exposure in order to maintain safety and safeguard performance.
Evaluating the Chemical Resistance of Nylon 12
Nylon 12 is well-known for its applications in harsh environments due to its excellent resistance to chemicals. Unlike Nylon 66, Nylon 12 has greater resistance to hydrocarbons, fuels, and solvents. It also serves its functional role in chemical environments where mechanical stress is imposed for long periods of time.
Research shows that screws made of nylon 12 can retain 95% of their tensile strength even after prolonged exposure to oil and fuel. In addition to this, compared to other variants of nylon, Nylon 12 is known to absorb less water, which leads to improved stability in the presence of moisture. These qualities combined make nylon 12 an ideal choice for application in automotive fuel lines, industrial seals, and hydraulic hoses where performance and reliability matter.
But like any other material, Nylon 12 does possess weaknesses. Certain strong acids and oxidizing substances known to cause decomposition over a period of time can render Nylon 12 nonoperable. Evaluating risks within the working environment helps determine the feasibility of the material for an application. In general, low absorption of water coupled with great flexibility makes nylon 12 an operable candidate for any application while allowing it to perform under challenging conditions.

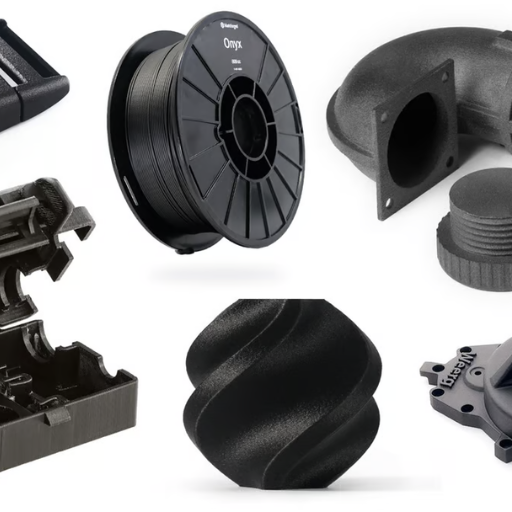

What Are the Applications of Nylon 66 and Nylon 12 in Industry?
Due to their exceptional qualities, both Nylon 66 and Nylon 12 have numerous applications in different industries:
- Uses of Nylon 66 include serving as the basis for numerous automotive components including, but not limited to, engine parts and air intake manifolds, owing to its high strength and heat resistance. It is also used in industrial textiles, conveyor belts, and electrical connectors.
-
Because of its flexibility and chemical resistance, Nylon 12 is preferred in the production of tubing, fuel lines, and some medical devices. Furthermore, its low moisture absorption makes it ideal for the construction of precision parts and electronic components.
The two materials are appreciated owing to their toughness and adaptability in many industries.
Common Uses of Nylon 66 in Engineering
Nylon 66 is utilized across different engineering applications because of its remarkable mechanical properties, thermal stability, and wear characteristics. It is widely adopted for the manufacturing of gears, bearings, and bushing,s where friction resistance and strength are fundamental requirements. Nylon 66 also withstands high stresses, rendering it fit for use in automotive parts such as engine covers, radiator tanks, and air intake manifolds.
Moreover, Nylon 66’s enduring nature when exposed to various chemicals, oils, and greases enhances its usefulness in industrial machinery and equipment. For instance, commercially available grades of Nylon 66 are frequently used in industrial-grade fasteners such as screws and nuts, where the material’s stability under varied environmental conditions is imperative.
Experimental evidence suggests that Nylon 66 retains mechanical properties during continuous use at temperatures as high as 120°C (248°F) while its melting temperature of about 255°C (491°F) is also beneficial in applications involving high heat. Such features, therefore, position everything designed for high performance in both industrial and consumer markets. In addition, the material’s stiffness and toughness enable thin-walled structures, which decrease weight and enhance efficiency in engineering assemblies.
Industrial Applications of Nylon 12
Nylon 12 is popular in multiple fields because of its high performance in tough conditions. For example, in the automotive industry, its low weight and high durability make it suitable for fuel lines, brake tubing, and cable sheathing. Withstanding fuels, oils, and chemicals, nylon 12 helps improve vehicle efficiency by lowering weight while maintaining reliability over time.
Nylon 12 is also applied in electrics for cable and connector insulation. Its excellent electrical characteristics and remarkable thermal endurance protect high power electronics assemblies. For example, a Nylon 12 dielectric is guaranteed to outperform 25 kV/mm which makes it useful for important parts.
Nylon 12 is also aiding the development of additive manufacturing or 3D printing. It’s easy to process, lightweight, and low in density, which makes it ideal for prototypes and aerospace and medical components. Its tensile strength is in the range of 40-60 MPa, depending on grade, which makes it useful for parts with high mechanical stress.
Finally, industrial coatings and linings apply the exceptional abrasion resistance and chemical stability of Nylon 12. These properties help in increasing the service life of pipes, tanks, and other machinery. Given its high performance, versatility, and reasonable pricing, it is evident that Nylon 12 remains a key innovation driver in current engineering technologies.
How Do Heat Resistance and High Temperature Performance Compare?
Unlike Nylon 12, Nylon 66 has superior heat resistance which allows it to perform better in applications that require higher sustained temperatures. Unlike Nylon 12, that performs well in moderated temperatures, Nylon 66 performs better under continuos heat exposure. Because of it’s higher melting point and ability to withstand prolonged heating without degrading, Nylon 66 is the preferred option for high-temperature applications.
Evaluating the Heat Resistance of Nylon 66
Nylon 66 polyamide is exceptional in terms of heat resistance due to its strong molecular make-up. Moreover, its melting point exceeds those of Alternative nylons, such as Nylon 12 and 6 which have lower melting points, sitting at approx 255°C (491°F). It’s also a hybrid between thermoplastic and thermosetting so its glass transition temperature is between 50 – 60 °C (122 – 140 °F). Hence, exposing it to moderately high thermal conditions will still allow it to retain shard mechanical properties.
When subjected to protracted periods of heat exposure, anda idified with heat-resistant materials, Nylon 66 has been shown to maintain its physical and chemical structure without deforming. For instance, heat stabilized nylon 66 grade can withstand operating temperatures beyond 150°C (302°F) for extended periods without considerable damages. This makes it ideal for use in the automotive industry, residential electrical insulation, and engine components.
The crystalline structure of Nylon 66 is receptor for excellent stability as it the material exhibits low thermal expansion when exposed to high temperatures, strength in mechanical force, enabling it to retain shape. Therefore, strctual parts with great performs in contsant hightemperature precision used with high remain still functional with lowdemand.
If manufacturers choose the correct material alongside grade, they can greatly improve the operational conditions set for Extreme Operating Conditions for further exploit Nylon 66s thermal enhancing properties.
Understanding Nylon 12’s High Temperature Capabilities
The main feature of Nylon 12 is its good thermal stability, which allows its use in more demanding applications that involve higher temperatures. The material has a glass transition temperature of about 50°C, while the melting point is between 178°C and 180 180°C. This guarantees that Nylon 12 will have sufficient dimensional stability and mechanical properties for moderate even at high temperatures. Moreover, its low moisture absorption ensures that there is no deterioration of the structural integrity, even in some humid conditions, and reliable performance is ensured in fluctuating conditions.
Additives like glass fibers and heat stabilizers, when used to reinforce Nylon 12, can greatly enhance its thermal tolerance and mechanical strength. For instance, working temperatures for glass reinforced grades of Nylon 12 are above 120°C, and it performs efficiently even at that temperature. Nylon 12 is widely used in the automotive and aerospace industries alongside industrial manufacturing due to its high temperature resistance, low weight, and high durability. Such versatility under extreme temperature conditions makes it a staple in high-performance materials.
What Are the Advantages and Disadvantages of Each Nylon Type?
Advantages and Disadvantages of Each Nylon Type
Nylon 6
- Advantages: Excellent strength, flexibility, and abrasion resistance; conserves impact resistance even at low temperatures.
- Disadvantages: Increased susceptibility to water absorption, which can compromise stability and functionality in damp conditions.
Nylon 6,6
- Advantages: Improved heat and wear resistance; greater strength and stiffness of sartiles compared to Nylon 6.
- Disadvantages: Processes take longer and are more expensive because of the material’s higher melting point.
Nylon 12
- Advantages: Amazing shape retention and low moisture absorption; excellent chemical resistance while maintaining functionality in severe conditions.
- Disadvantages: Higher cost in comparison to Nylon 6 and Nylon 6,6; marginally reduced strength characteristics.
Every kind of nylon has specific advantages which are helpful in particular applications and industries, however, their use is often a compromise between expenditures, reparable cost, and eco-friendly properties.
Advantages and Disadvantages of Nylon 66
Because of its advanced industrial plastics, Nylon 66 is frequently employed for demanding purposes.
Advantages:
- High Mechanical Strength: Structural and load-bearing applications can rely on Nylon 66 since it has high tensile strength as well as superior stiffness.
- Heat Resistance: For nylon or any thermoplastics, high temperature is defined as anything above 150 degrees Celsius. Nylon 66 can work in high-temperature environments (greater than 265°C) without any structural changes.
- Good Wear Resistance: The material contributes to longer equipment lifespans in components like gears, bushings, and bearings due to its excellent resistance to abrasion and wear.
- Chemical Resistance: Commonly used in the automotive and industrial sectors, Nylon 66 withstands many hydrocarbons, oils, and greases.
- Dimensional Stability: As compared to other nylons, Nylon 66 has low moisture absorption, which gives it better shape retention accuracy in humid conditions.
- Electrical Insulation: Alongside thermal resistance, Nylon 66 acts as a good electrical insulator, enabling its use in electrical and electronic components.
Disadvantages:
- Higher Cost: Due to its unique properties and the accompanying production methods, Nylon 66 is costlier than its counterparts, including Nylon 6.
- Moisture Sensitivity: Nylon 66 is classified to have low moisture absorption, but the retention of water affects its strength properties over time.
- Lower Impact Resistance (Compared to Alternatives): Though possessing fair strength, Nylon 66 may exhibit somewhat poorer behavior over sudden impact loads when compared to polycarbonate.
- Processing Challenges: Increased molding temperatures and other specific conditions limit the ease of manufacturing nylon 66, leading to greater costs and complexity in production.
Applications of Nylon 66
The automobile, aerospace, and consumer goods industries make extensive use of Nylon 66. It is also used in the production of industrial machinery, engine parts, textiles, and even dental instruments because of its outstanding thermal and mechanical qualities.
Pros and Cons of Using Nylon 12
Pros
- Nylon 12’s resistance to fuels, oils, and harsh chemicals is exceptional. It is therefore perfect for use in industrial environments and automotive fuel systems.
- Nylon 12 stands out due to its low moisture absorption compared to other polyamides. This helps maintain structural stability, mechanical performance, and overall functionality even in humid environments.
- Dense with high strength and durability, Nylon 12 is ideal for aerospace and 3D printing due to its lightweight nature.
- Dynamic loads and vibrations require efficient materials such as Nylon 12 which has natural flexibility and is highly impact resistant.
-
Nylon 12 is recognized for its ease of processing in the 3D printing industry which enables the creation of advanced parts or prototypes through selective laser sintering (SLS), multi jet fusion (MJF), and complex additive manufacturing techniques.
Cons
- Higher Cost: Compared to other types of nylon such as Nylon 6 and Nylon 66, Nylon 12 is usually more pricey. This may restrict it’s usage in cost sensitive industrial applications.
- Lower Heat Resistance: Nylon 12 is stable under a number of conditions. However, when compared to other nylons, it has a higher risk of succumbing to heat. This restricted its usability in high-temperature environments.
- Limited Load-Bearing Capacity: Although the flexibility provided by Nylon 12 is great, it’s ability to withstand heavy loads is not as great when compared to alternatives like Nylon 66.
- Specialized Manufacturing Requirements: Nylon 12’s processing conditions, especially for 3D printing, are stringent, which may require additional tools or knowledge for proper execution.
Balanced strength, chemical resistance, and processability render Nylon 12 very well suited for specialized applications, particularly within the automotive, aerospace, and additive manufacturing industries. It may, however, be less ideal for general use due to high cost and temperature limitations.
Reference Sources
- Thermal Annealing Surface Modification:
- Focus: Examines the effect of thermal annealing on Nylon 66 nanofiber membranes for wastewater treatment.
- Key Findings: Annealing at different temperatures (60°C, 80°C, 120°C) alters membrane performance and surface properties.
- Methodology: Experimental analysis of nanofiber membranes under varying thermal conditions.
- Read more
- Behavior Classification in PA66/HCl Binary System:
- Focus: Investigates the thermodynamic behavior of Polyamide 66 (PA66) in separation membranes.
- Key Findings: Highlights the role of PA66 in microfiltration and ultrafiltration processes.
- Methodology: Thermodynamic and physical-chemical analysis.
- Read more
- Dyeing Nylon 66 with Cold Brand Reactive Dyes:
- Focus: Explores a novel dyeing method for Nylon 66 and its fastness properties.
- Key Findings: Compares wash tests and dyeing efficiency on Nylon 66 substrates.
- Methodology: Experimental dyeing and fastness testing.
- Read more
Frequently Asked Questions (FAQs)
Q: What is the main difference between Nylon 66 and Nylon 12?
A: The primary difference between Nylon 66 and Nylon 12 lies in their chemical structure and properties. Nylon 66 is made from hexamethylene diamine and adipic acid, giving it excellent strength and thermal stability. Nylon 12, made from lauryl lactam, offers greater flexibility and lower moisture absorption, making it suitable for applications requiring more flexibility and UV resistance.
Q: How does the strength of Nylon 6 compare to Nylon 66 and Nylon 12?
A: Nylon 6 has a lower tensile strength than Nylon 66 but is more flexible. Nylon 66 is known for its high strength and rigidity, making it ideal for engineering plastic applications. Nylon 12, while not as strong as Nylon 66, provides good impact resistance and flexibility.
Q: What are the typical applications for Nylon 66 and Nylon 12?
A: Nylon 66 is commonly used in automotive parts, industrial machinery, and high-performance textiles due to its strength and heat resistance. Nylon 12 is often used in applications requiring flexibility and UV resistance, such as tubing, seals, and certain consumer products.
Q: How does moisture absorption differ between Nylon 66 and Nylon 12?
A: Nylon 66 tends to absorb more moisture compared to Nylon 12, which can affect its dimensional stability in humid environments. Nylon 12, with its lower moisture absorption, maintains its properties better in such conditions, making it suitable for outdoor applications.
Q: Can you explain the UV resistance of Nylon 12 compared to Nylon 66?
A: Nylon 12 has better UV resistance than Nylon 66, which makes it more suitable for applications exposed to sunlight. This characteristic helps preserve the material’s properties and appearance over time when used outdoors.
Q: How do the properties of Nylon 6 relate to Nylon 66 and Nylon 12?
A: Nylon 6 offers a balance between strength and flexibility, with properties of nylon 6 including good impact resistance and lower cost. It is not as strong as Nylon 66 but is more flexible than both Nylon 66 and Nylon 12, making it suitable for a range of applications.
Q: What are the environmental considerations for using Nylon 12?
A: Nylon 12 is favored for its low moisture absorption and UV resistance, which reduces the need for frequent replacements and maintenance, thereby contributing to sustainability. However, like other nylons, it is derived from petrochemical sources.
Q: How does Nylon 66 compare to other common nylon grades like Nylon 6 and Nylon 11?
A: Nylon 66 is stronger and more heat resistant than Nylon 6, making it suitable for demanding engineering applications. Compared to Nylon 11, Nylon 66 offers higher strength but less flexibility and moisture resistance. Nylon 11 and nylon 12 are often used where flexibility and environmental resistance are needed.
Q: What are the advantages of using Nylon 12 in nylon injection molding?
A: Nylon 12 is advantageous in nylon injection molding due to its low moisture absorption, good dimensional stability, and excellent surface finish. Its flexibility and impact resistance make it ideal for producing complex parts that require durability and precision.
Q: Are there any emerging trends in the use of Nylon 66 and Nylon 12?
A: Emerging trends include the development of bio-based nylons and enhanced composite formulations to improve performance and sustainability. Nylon 612 is gradually replacing nylon 610 in some applications, and innovations in additives are enhancing the UV resistance and mechanical properties of these materials.
