When we turn our sights to cutting-edge sectors like aerospace and electronics, then it is understandable that there is a pressing need for enhanced malleable supplies, capable of withstanding rigorous applications. One such tech-friendly supply that is gaining momentum in current times happens to be the polyetherimide or simply PEI raw material that comes in plastic pellets. The thermal stability and other mechanical properties of PEI, among others, are simply outstanding, and the usage of such products is immensely adding to achievements recorded in high performance engineered components. This document delves into the advanced polymer world, particularly centering on PEI raw material and how it is promoting the manufacture of unconventional products and solving issues in the present-day aerospace and electronics industries. Discover the unattainable characteristics of PEI and understand the novel applications why these sectors are set to develop in the future.

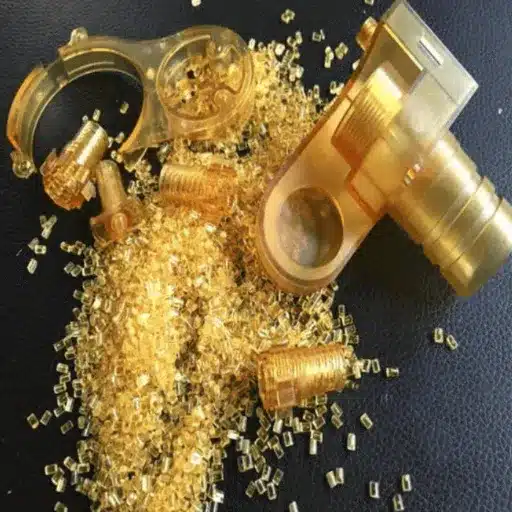

Understanding PEI and Its High-Performance Properties
What is Polyetherimide (PEI)?
A superior-grade opaque thermoplastic material, Polyetherimide (PEI), is noteworthy due to its uncommon robustness, resistance from heat, and the possibility to keep stable geometric parameters. The outstanding tensile characteristics of the substance have made it suitable to retain its uniform pattern features of them even under the utmost conditions, which explains its application in harsh environments. The insulation feelings and antiputrefactive components also contribute to its importance in some industries like aviation and electrical engineering. Furthermore, the materials are corrosion resistant and will withstand a range of solvents and because they are easy to mould through the various techniques like injection moulding as well as 3D printing changing different structures possible. Due to these characteristics, PEI has an indisputable significance in the socio-economic field in terms of the making of precision and high-performance structural elements – it is a lever of technology.
Advantages of PEI Plastic in High-Temperature Applications
Polyetherimide or otherwise known as a PEI plastic is a polymer that is highly thermally stable and can be well suited for applications involving high temperatures. An element of PEI’s thermal stability is that it can be used up to a temperature of around 340°F, 170°C without suffering any adverse changes. Such heat resistant properties are attractive especially in fields such as automotive and aeronautics, where components are used at high temperatures and need reliability. Furthermore, PEI material has reduced dimensional changes due to thermal loads, thus decreasing warp or deflection over time. Due to its inherent property of being flame retardant and not generating much smoke in case of incineration, it is even safe to use this material in Shields used in Electrical as well as in Communication gear, in Aircraft Interior and such highly critical applications. These characteristics along with the high performance of these materials even in the toughest environmental conditions and the ease of reinforcement make PEI a material of paramount importance in the field of modern engineering technology.
Comparison of PEI with Other High-Performance Thermoplastics
Polyetherimide, or PEI, is particularly memorable in the realm of high-temperature thermoplastics because it has properties that one would be loathed to call ordinary in most high-performance thermoplastics such as PEKK or even PPS. Polyether ether ketone (PEEK)’s compound structures have worked to their advantage in the regard to resistance to chemicals, and PEI presented limitations regarding the maximum continuous useable temperature. However, PEI has found a place for itself even if it is more cost friendly and presents similar strength. PEI naturally resists fire without adding any more material.
Equally, PEI demonstrates greater thermal stability and strength retention at higher temperatures as compared to PPS. It is expected that PPS, which is much appreciated for its high chemical stability, may disappoint if it is to be used for long-term structural applications. The fusion of PEI structural rigidity, high dielectric strength, and thermal stability advantages and properties may be particularly beneficial in challenging electrical and electronic industries involving for example military, aerospace, automotive and electronics sectors context.
It is a characteristic unique to PEI (polyetherimide) that sets it apart from other resins. Since it can be used with other kinds of resins including polycarbonate, nylon, and polyester, it becomes easier to produce individual parts in multi‐component/injection molding applications. Evidently, this is also another aspect where PEI scores better than other high heatresistant polymers or amorphous plastics.

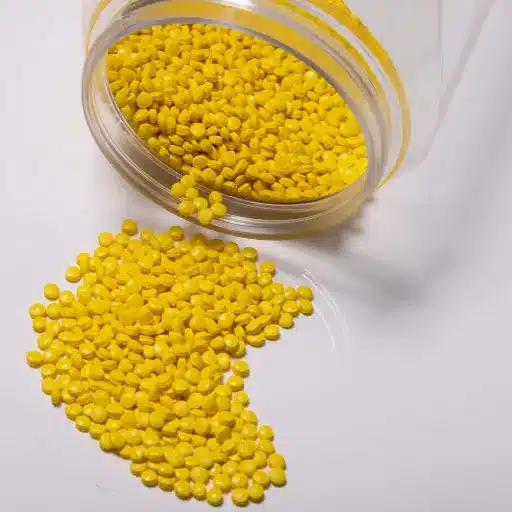

PEI Plastic Pellets: Characteristics and Grades
Types of PEI Pellets and Their Specific Applications
There are a multitude of PEI (Polyetherimide) pellet formulae as well as composed types where they can cater to different demand in the market. Containing non-filled grades, glass filled and halogenated grades. Each is determined in the use scope.
Non-filled PEI Pellets: It is recommended that these types of resin pellets be used due to its high optical clarity and high mechanical strength. The non-filled, rigid plastic pellets are used in the manufacture of medical devices, lighting components, and aerospace interior applications where both clarity and toughness are requiredom.
Glass fibers Reinforced PEI Pellets: The resins are reinforced with a certain percentage of glass fibers to increase their bending stiffness, creep resistance, tensile strength, and other mechanical properties. They are mostly molded in automotive heat resistant parts, equipment components and quite a number of durable sections in which mechanical and thermal conditions are in.
Flame Resistant PEI Pellets: PEI grades with flame retardancy and reduced smoke generation are widely used for manufacturing electrical insulations and connectors. Also, the low smoke emission and inherent flame resistance of flame retardant PEI grades is excellent for use in insulator materials, sheath applications, and high performance electronics where safety and reliability are important.
The High Durability Grades: Much like the regular versions high durability grades of PEI are present in the market and offered by manufacturers. Such goods include PEI pellets fortified with materials such as carbon black for the purpose of heat transfer or those containing impact modifiers for additional strength. These are constructed for specific purposes such as oil and gas applications and high-temperature housing operation.
These types of PEI pellets enable engineers and product designers to enhance mechanical performance efficiency levels in high load-working conditions, without losing the importance of high durability, accuracy, and adherence to the regulations that may be present.
Understanding PEI Resin and Its Granule Form
The granule form of the PEI resin is a material that is known as highly versatile and high-performance material and is used in various industries because of the extraordinary characteristics it possesses. PEI granules are the choicest ones due to the high performance it provides, exceptional heat resistance, dimensional stability and intrinsic flame retardancy, it the industry’ preference for the most challenging applications. Granulated form of the material makes the process much easier which includes injection moulding and extrusion thus helping manufacturers create detailed and accurate parts with uniform quality. Such adaptiveness plays a critical role in the industries like aerospace, electronics, and automobiles as they are required to have the highest standards. Furthermore, PEI granules possess high levels of chemical endurance, enhancing the application range to even harsher environments. These strengths highlight the distinct advantages of PEI resin and why it plays a role in today’s industrial landscapes.
Key Suppliers of PEI Plastic Materials
Several well-known manufacturers meet the demand of PEI plastic materials, aimed at having the best products for different industries in the global context. Among these manufacturers, SABIC which is popular with its Ultem™ compound is identified as the major manufacturer of different types of PEI resins for the electronics, medical device and automotive industries. Ensinger is another well-known company which deals with PEI products that are already as half-products belong to its specialty, and such products are chip insets.
Röchling Industrial provides unique PEI materials which the Company claims to have the best performance in challenging industries like aerospace and engineering fields. Besides, Mitsubishi Chemical Advanced Materials presents PEI under the trade name of Ketron ensuring enhanced mechanical as well as thermal properties which are stated as suitable for demanding conditions.
These companies focus on quality, innovation and customer-centric approach to make it possible for sectors that rely on the performance and reproducibility of materials to continue operating. It is their works, in the end, which accentuate thus the increasing need for PEI in advanced engineering and processing in the nowadays.

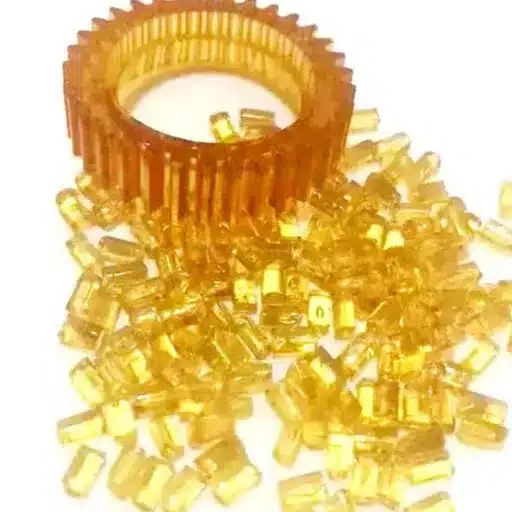

Applications of PEI in Aerospace and Electronics
Use Cases of PEI in Aerospace Components
In the realm of aviation, PEI has been a popular material because of its awesome thermal deformation properties, strength to weight ratio and aggression against different chemicals. It finds extensive use in fabricating structures for the passenger cabin of aircraft such as seats, side panels of the cabin, and ventilation ducts where flammability and smoke and toxic gases resistance are stringent conditions to be considered. Further, PEI is capable of being used at extremely low or high temperatures, and hence is an ideal material for use in engine constructions and electric connectors when the need arises. Because it saves weight, it also positively affects the fuel consumption, which is necessary for operations in the aviation industry. PEI materials have proven to be versatile and dependable materials therefore, the aerospace industry is progressing.
Role of PEI Plastic in Electronic Devices
Utilization of Polyetherimide (PEI) plastic remains indispensable for the efficient employment and manufacturing of the current generation of electronic devices. Due to its very good electrical resistance and high-temperature issue, PEI is often chosen for elements like the circuit boards, connectors and insulators. And being nonflammable in nature, it helps to adhere to safety standards which are quite comprehensive in some electronic applications; and it’s retention of form despite heat and stress ensures endurance. More so PEI’s ability to be easy to use given that it’s light but yet tough, it can withstand harsh handling, and it services the consumer and industrial markets that demand for spontanious shrinking electronic components. Also, in view of today’s ever improving materials, it became absolutely possible to improve performance of electronic components in terms of their reduced size and energy saving and their increased durability which can be easily used according to the requirements of current age.
Impact of PEI on Product Performance and Reliability
Polyetherimide (PEI) is a high-performance polymer that has made a substantial positive difference in terms of productivity, reliability, and quality across multiple industries. Its exceptional resistance to thermal degradation allows the parts offers the part to work freely at high operational temperatures helping in minimizing operation associated issues mainly such as key areas: aerospace, automotive and electronics. In addition, the high strength to weight ratio of PEI increases the life of the products yet keeps them light, an essential characteristic in the present day where design is oriented towards energy conservation and portability. PEIs being quite resistant to chemicals and hydrolysis, uses pei in items that are likely to be used in harsh conditions like in area of medical tools or in manufacturing equipment where exposure to strong substances is possible over a long period as a result. Additionally, advancements in manufacturing such as 3D printing with PEI are able to produce highly complicated and precise parts which in turn improves products long term performance and viability. All these features contribute to the importance of PEI as an essential product for industries that attach importance to safety and innovation aspects.

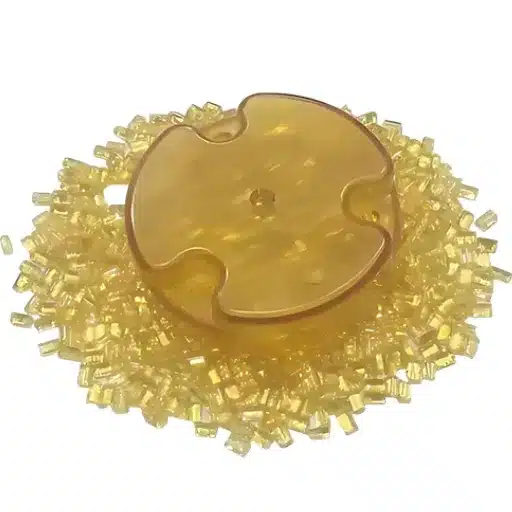

Injection Molding with PEI Plastic Pellets
Techniques for Successful Injection Molding of PEI
When working with the addition of PEI pelletofil as a starting material in the polymer processing by injection, ensure necessary changes of the process parameters in order to reach optimal characteristics of the substance which possesses high-strength properties and is thermally stable. Initially, it is worth paying attention to maintaining correct melt temperatures which are often targeted to be in the region of 630 to 800 F or between 332 to 427 C. This range is the most critical for the control of the fluidity and break down of the material system. The temperature of the mold should also be moderated and is usually adjusted to range from 300 to 400 F or 149 to 204 C from min to max temperature to enhance surface finish and limit material contraction.
Pre-drying the pellets before you feed them into the auger system of the injection molder is also very important in that it prevents the most common bubble formulation defects like discoloration of the material. Typically the pellets have to be pre-dried at 300 degrees F or 149 degrees C for 3 to 4 hours before using them in the process. In addition to the above addition of a mixing tip and making sure there are no dead zones at the entry of the material into the machinery increases the versatility of that machine.
In relation to the pressing process, forceful material distribution is assured since PEI has high material resistivity, and thus it uses high pressure levels to fill the cramped high aspect ratio features. Because peaks in crystallization can occur anywhere including the gate, excessive material pressure surfaces in the cavity causes flash marks which are undesirable in the end product. Another advantage of cooling time in die situated within the cavity is the enhancement of mechanical properties in the molded part such as elongation and flexural strength. This means less shrinkage in the part’s volume from application of pressure and avoids the occurrence of the more familiar shrink lines. Changing the design of the holder to enhance ejection and add an additional ejector assembly as the melt is arranged is another option. Not to miss is also the ability to prepare inserts and bond them which makes it possible to use without sacrificing the parting line integrity. Last but not least the molding machine is capable of withstanding high clamping force and can have deep draw configurations for molded parts. Doc. of the slide: types of dies and their applications; die part components and operations; die design and engineering methodologies etc. All in all, the below bullet points mention the future work of the on-going project.
Challenges and Solutions in Molding PEI Resin
Molding PEI (polyetherimide) can be quite difficult because of the high performance features expected of it and the intensive manufacturing demands. One of the main prevailing issues pertains to the high processing temperatures of the material, which sometimes surpasses 350°C. This fact mandates that the molding components have to be quite elaborate so as to even out these temperatures and maintain a smooth process flow throughout the heat cycle as well as the cooling phase. To alleviate this situation, manufacturers can make use of high temperature resistant molds or upgrade to new heat efficient molding machines with reduced heat loss especially during the process of molding.
The other most important challenge that PEI has is the water absorption which is caused by the PEI. This is dangerous in PEI production because the items may have bubbles or remain with marks on them. The more ideal solution to this problem after pre-dosage is ensuring the moisture in the resin is below 0.02 percent so as to provide an expected quality always. Vacuum and desiccant drying are the methods of choice to perform the needed actions in a controlled fashion.
Moreover, it is worth mentioning that the high viscousness of PEI is not helpful for achieving uniform flow in sophisticated molds. In fact, this will result in short shots and internal stresses. The use of high pressure molding and improvements in the gating system are important modifications that will prevent the differences in material flow and which will help to create a good seam between the materials in the mold. It is also possible to employ mold constructions with filed corners and even walled thicknesses to help eliminate such issues as stress concentration that can affect the quality of molded parts.
In conclusion, stress relief in components from PEI is crucial for compliance with performance standards. For instance, annealing processes can assist in making certain small parts, where the parts are heat treated in a controlled temperature environment, to appreciably remove all residual stresses in the material and direct it to be more dimensional stable. With the a combination of accurate process parameters and benefitss from modern tooling solutions, manufacturers can easily resolve these issues by ensuring the provision of zero defects PEI components to users in the aeronautics sector, medical devices, or the electronics industry.
Best Practices for Working with PEI Plastic Pellets
Various techniques involved such as the efficient handling and treatment of PEI (polymer polyetherimide) plastic granules require adherence to strict processes to achieve impressive outcomes especially in strenuous areas. Protecting against Palladium interferants is very important since PEI granules are prone to moisture absorption. It is advised that the pellets be kept in confinement during storage and dried before put to use. Drying is commonly carried out using a desiccant dryer at temperatures around 150°C (302°F) for 4–6 hours with a target of achieving a moisture level of below 0.02% which is desirable.
It is crucial to adhere to certain standards with regard to the temperature distribution during the plastic injection process. In general, the temperature of the processed material should lie between 340°C and 400°C, when talking about PEI, with molds reheating practically in the range of 140°C-200°C. In most cases an exception can be made for the specific grade that requires higher temperature pretreatment. It is worth noting that even increasing the back pressure may sometimes not help if the plastic materials in the barrel do not mix properly. Screw design and back pressure settings should also be optimized to deformation of the material in the barrel while prevents color streaking or other processing issues typically caused by other factors.
After molding, it would be ideal to carry out additional quality improvement measures. Sometimes components are subjected to some controlled heating at about 200°C for a number of hours, and afterwards undertake more gentle temperatures. It is possible to push for changes in such standards that help ensure high-standard parts used in aerospace engineering, motor vehicles, and healthcare.

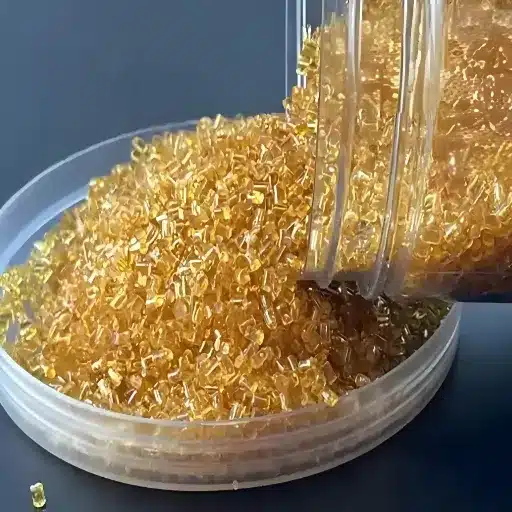

Future Trends in PEI and High-Performance Thermoplastics
Innovations in PEI Applications and Technologies
Given the metamorphosis in the field of polyetherimide (PEI) and its technological arenas, it cannot be sidelined in any way in as a highly operative thermoplastic because it has gained increasing acceptance across industries. An enabling innovations center is on the additive manufacturing well 3D prints in which PEI is revered to relish production of both light and strong-structured unconventional geometrical parts which were quite impossible to achieve through conventional methods. It has always been a positive market for such materials as PEI prior to the enhancements of the PEI filaments and powders whereby they improve the printability making room for the aerospace and the automobile industry, hence, enable these industries to exploit the excellent chemical durability, stability to heat as well as strength in enhancing the industry. When you consider the fact that PEI is resistant to extreme temperatures, it is not surprising that one of its most significant applications is aerospace, for example as electric shields and chaff in the engine compartments.
Composite materials composed of PEI combined with carbon or glass fibers, a combination offering the best performance and the least weight, were preferred and other composites were typically disregarded during the shape optimization process because the PEI based composite materials offer superior performance. These composites are distinct, particularly in the convenience and performance of interior applications in aircrafts, where low smoke toxicity material is a [FIRE INDIRECT CL 2]-approved flammability requirement yet without compromising the mechanical strength So it is only expected that more composites will be studied or characteristics of fibres will be analyzed to further widen the applications of CF. Furthermore, PEI’s use in the medical industry is increasing since the polymer is biocompatible which brings such applications as surgically placed implants with bones, reusable hand instruments in operating rooms and dental staff’s stool and tray.
There’s more potential to explore the use of polyetherimides (PEI) in applications such as electrical conductivity. This is because researchers are working on formulations for PEI filled up with conductive materials that can be used in advanced electronics, such as enclosures and parts in 5G infrastructure. In the advancement of PEI technology, the above improvements serve both the purpose of increasing the areas in which it can be used and demonstrates how essential it will be in the continuing development of high performance engineering.
The Role of Sustainability in PEI Production
In order to comply with the set laws as well as environmental targets, as part of its fabrication, modern techniques have come to advocate for one where carbon emission is minimized through the use of energy efficient technologies and fewer substances that are not regenerable such as fuel oil. In addition, it has been developments in radiation technology and the waste water treatment in the past 20 years that have made it possible to recycle most of the PE waste materials and in turn lead to the smaller environmental effects during the production process. In more specific terms with respect to the environmental aspects of the synthesis of the PEI most notable is the gradual innovation towards chemical-free or solvent-less processes. As a part of this attempt, the process of resin synthesization by some producers wise extracted polymer materials towards the principle of bio-degradation. Meanwhile, This approach not only affects environmental pollution but also to the waste PET contamination, thus it is necessary to find a solution to that problem.
Market Outlook for PEI and Its Applications
My understanding of the data I have reviewed about the raw material Polyetherimide (PEI) tells us that it remains a growing commodity driven particularly by the high value it has in very demanding applicative industries. PEI like in the case of the aerospace, automotive and electronics sectors is demanded highly due to the suitable balance of properties it has for these sectors. The world market of PEI is estimated to be developing at a calculated pace and will be driven by the changes in production techniques and the demands of advanced, lightweight, high performing materials for the given tasks. Moreover, the global trend for electric cars and enhance renewable energy sources will also increase the value of PEI due to its ability to cater high temperature electrical components and structural parts as well.
Moreover, the sector of health care becomes one of the hopeful domains especially to implement PEI because of its biocompatibility, acceptance of sterilization and safety requirements. The use of biocompatible PEI is versatile as it is used more and more in surgical equipment designs, medical product designs and medical components sleeves designs, which enhances its potential in the industry. Furthermore, in the context of one’s location, such as the Asia Pacific region, an increase in consumption of PEI is projected due to the further increase of economic activities and manufacturing capacities in these regions.
To sum up, I think the future looks bright for PEI, seeing how the development of technology and sustainable materials at the same time at the global level is inevitable. Adoption of PEI in line with the more eco-friendly standards including the utilization of bio-materials makes it more preferable to industries looking for sacromotion without wanting to clad back on effectivity. Consequently, all these factors confirm how the innovation promoted by PEI is highly justified and continues to thrive in a variety of applications.
Reference Sources
-
High-Performance Polymer Blends: Manufacturing of PEI and PC – PMC – Explores the fabrication of PEI and polycarbonate blends to enhance material properties.
-
Extrusion Additive Manufacturing of PEI Pellets – MDPI – Investigates the use of PEI pellets in additive manufacturing for engineering applications.
-
Polyether Ether Ketone (PEEK) and Polyetherimide (PEI) – Springer – Reviews the properties and applications of PEEK and PEI materials, including their blends.
Frequently Asked Questions (FAQs)
What is PEI material and how does it compare with the 1000 PEI grade and the polyetherimide?
What is PEI granulate? It is nothing but the raw materail of the molding and extrusion therapies gorgeously expressed as “PEI pellets” which are available in various grades such as 1000 PEI or certain Elderly Polyetherimid materials such as Ultem from SABIC. As mentioned earlier, 1000 PEI features the same properties with respect to creep rupture characteristics and glass transition as Ultem. The main difference is that avails of different formulations whose composition happens to be private and hence not public. To purchase PEI announced, a closer attention to avoid pitfalls like thermal expansion coefficient, dimensional stability and moisture absorption should definitely be paid. In most cases, Ultem is used in structures such as those for aerospace applications or in medical devices because the castable materials are inevitable. Fiber glass filled PEI granules, on the contrary, can be either filled or unfilled, based on whether the increased stiffness or mechanical strength is the required characteristic.
What are the mechanical and thermal properties of PEI, which allow it to be used for high performance applications?
A composite material known as Wibre is distinguished by its excellent ultimate strength, including strength to weight ratio and its rigidity characteristics which make these materials use for supporting structural moulded items and device casings under load. Essentially the low shrinkage properties of Wibre give the parts the ability not only to resist high-temperature conditions without degrading or developing temperature-induced deformations, but also without having thermosetting issues. PEI possesses high impact strength and is high rigid, also fiber improved or concentrated strength may be appropriate application for transporting machinery or airplane. It has low water affinity and does not lose its mechanical and electrical features when exposed to moisture psychological issues. Ice in hairspring does normally requires some thawing. A large number of industry test procedures address such simplification specific issues like for example coefficient of thermal expansion and aging rate and flame retardant content for all kinds of materials exposed to painful V-0 evaluations.
Do you think it’s alright to use PEI granules in medical apparatus as well as parts that can be sterilized?
There are PEI grades that are meant for medical device applications. These can include the grades which are able to meet some of the requirements such as the USP and specified MILs for the device components and housings for that sterilizing processes will be needed. With PEI, it can be sterilized since the material can withstand such conditions, however, the sterilization techniques applied to the materials should be suitable. For all applications, it is always necessary to review the biocompatibility studies and the data required which are all available for the particular PEI grades in question, even if both cases involve biocompatibility concerns implants and non-implant device housing. Although I am not quite sure how helpful it will be, the natural grade and the see through grade are available but production is influenced by color and additive in terms of radiation or steam acceptance. For high-purity lab or CAS-registered PEI formulations, request letters of specificity and supplier identification codes as evidences of quality documentation.
How are PEI’s resistance and capacitance characteristics in connector and electronic application?
PEI has relatively high dielectric materials combined with low dissipation factors, flame resistance as gauged by smoke emissions or fire retardants, which is why the material is preferred for manufacturing connectors, insulators and electronic devices. Its structure is made of polymers hence the polymer dielectric constant for PEI barely changes however the polymer itself is subjected to changes in temperature. For engineers who mainly use PEI in coaxial connectors or in dimensional parts that require heating, its extremely low CTE and much wider range of dimensions needed preserves the clearances without any damage. These can involve materials with flame-inhibiting properties, that is, achieving a V-0 rating and still having minimal smoke and toxicity due to a lack of burning. Concerns appear when formulating certain grades with respect to exceptions made in those reservations mainly the need for dielectric strength and chemical resistance towards hydrocarbons, alcohols, and acids.
What characteristics need to be accounted for when molding PEI pellets into precision components?
Molding PEI requires that the pellets dry at controlled conditions to the desired level in order to avoid absorption of moisture and to obtain dimensional accuracy and surface quality for the precision parts. In general, higher barrel temperatures, and injection speed is adjusted to suit the higher melt viscosity. However, fiber filled grades may need some modifications in shear and gate designs to prevent fiber slippage. The tooling should be able to take the thermal expansion of the material and tapping in its flow direction so as to constrain warpage as well as maintain very fine tolerances in the part. It is often useful to further rectify the molded structure by then subjecting the part to a certain temperature, to release internal stresses and to enhance the mechanical properties and heat resistance to a certain extent. Buyers as well as mold makers are advised to refer to the resin specification and supplier data sheet for estimated temperatures and shrinkage of the resin during processing.
In what way does PEI perform under challenging conditions as far as the automotive and packaging sectors are concerned?
PEI has been favored in automobile applications because of such reasons as its temperature resistance, mechanical dynamics and the fact that it has a limited tendency to emit smoke or catch fire, making it applicable in several components like under-the-hood connectors, structural clips, and sensor housings which are found in environments where there is high severity. However, in food service business, PEI is quite rare, but due to its resistance to hydrocarbons, alcohols and certain acids, it serves specialty purposes in the industrial or technical product packaging, although this is not normally for general food service situations unless specific certification is sought. The transportation sector rates PEI highly for the design of lightweight, high-strength components where a thermally stable material with good dielectric properties is necessary. While accelerated aging tests subjected to PEI are also performed to assure product reliability. An order for PEI in these sectors is usually placed so as to meet the requirements of dimensional stability, bending rigidity, and lightweight structural components.
