When Chen, a sourcing manager at a Shenzhen electronics factory, approved silicone for his company’s new wearable device straps, he thought he was making the safe choice. Six months and $87,000 in tooling costs later, his production line was running at 60% capacity — the LSR molding cycle was three times slower than projected. A competitor down the road launched an identical-feeling product using TPE overmolded onto polycarbonate, hitting the market two quarters earlier at a 40% lower landed cost. Chen’s “safe” material choice had silently eroded his company’s entire first-mover advantage.
The TPE vs silicone decision is not about which material wins on a data sheet. It is about which material wins in your factory, on your timeline, and within your budget.
This guide gives you a manufacturer-level comparison of TPE and silicone — from raw material chemistry and processing economics to application-specific selection criteria and supplier evaluation. Whether you are an engineer specifying materials for a new product line or a procurement professional consolidating your polymer supply chain, you will walk away with a clear framework for making the right call.
TPE vs Silicone at a Glance
The table below provides a quick-reference comparison of the two materials across the specifications that matter most to manufacturing professionals.
| Property | TPE (Thermoplastic Elastomer) | Silicone / LSR |
|---|---|---|
| Material Type | Thermoplastic copolymer (re-meltable) | Thermoset elastomer (permanently cured) |
| Temperature Range | -40°C to 120-150°C | -60°C to 200-260°C+ |
| Hardness Range | 0 Shore A to 95 Shore A | 10 Shore A to 80 Shore A |
| Compression Set | Moderate; varies by formulation | Excellent; near-zero under sustained load |
| Chemical Resistance | Good; formulation-dependent | Excellent; broad resistance to oils, acids, solvents |
| UV/Weathering Resistance | Moderate; requires stabilizer additives | Excellent; inherently resistant |
| Biocompatibility | Medical grades available (ISO 10993) | USP Class VI, FDA, ISO 10993 certified |
| Recyclability | Yes — regrind and re-process | No — thermoset, not recyclable once cured |
| Raw Material Cost | 2.50−2.50−5.00/kg | 4.00−4.00−8.00/kg |
| Tooling Cost | 5,000−5,000−20,000 | 8,000−8,000−30,000 |
| Processing | Standard injection molding, extrusion, 3D printing | Specialized LSR injection or compression molding |
| Overmolding | Bonds readily to PP, ABS, PC | Limited; requires primers or mechanical interlock |
| Cycle Time | Tens of seconds | Minutes (curing required) |
| Best Applications | Consumer goods, grips, automotive interior, single-use medical, footwear | Medical implants, food-grade seals, high-temp gaskets, bakeware, peristaltic tubing |
This table alone answers the most common question: neither material is universally better. Each dominates in specific conditions and fails in others. The rest of this article shows you exactly where each belongs.
What Is TPE?
In any tpe vs silicone evaluation, understanding TPE’s chemistry is the starting point — it is the reason TPE processes differently and costs less.
Thermoplastic elastomers are a class of copolymers that combine the functional elasticity of rubber with the processability of standard thermoplastics. Unlike traditional vulcanized rubber, TPE does not undergo permanent chemical crosslinking during processing. It relies on physical crosslinks — polymer chain arrangements that soften and flow when heated, then re-harden upon cooling.
This characteristic is what makes TPE so valuable in manufacturing: it can be melted, injection molded, extruded, and most importantly, re-ground and re-processed. Scrap from your TPE production line is not waste — it is a recoverable material asset.
The TPE Family: Not All TPEs Are the Same
The term “TPE” actually covers several distinct polymer families, each with different cost and performance profiles:
- TPE-S (SEBS/SBS-based): The most common and cost-effective class. Excellent for consumer grips, toys, and general soft-touch applications. Shore hardness from 0A to 95A.
- TPU (Thermoplastic Polyurethane): Higher abrasion resistance and tensile strength. Common in footwear, cable jackets, and industrial belts. Vulnerable to hydrolysis in wet environments.
- TPV (Thermoplastic Vulcanizate): Dynamically vulcanized EPDM dispersed in polypropylene. Best-in-class compression set among TPEs and excellent chemical resistance. Widely used in automotive weather seals.
- TPO (Thermoplastic Olefin): PP/EPDM blends. Low cost, good impact resistance at low temperatures. Used in automotive bumpers and exterior trim.
- TPEE (Thermoplastic Polyester Elastomer): Highest heat resistance among TPEs (up to 170°C for some grades). Used in under-hood automotive components. More expensive and harder to process at low hardness.
Suzhou Yifuhui New Material Co., Ltd. supplies TPE and TPV pellets in a range of Shore hardness grades and melt flow specifications to match your injection molding and extrusion requirements.

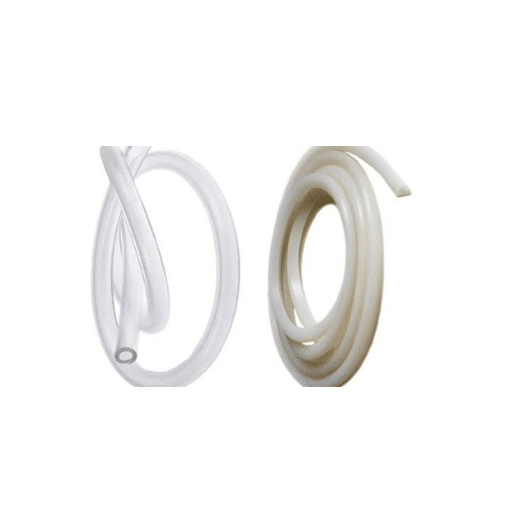

What Is Silicone Rubber / LSR?
Silicone is a synthetic elastomer with a fundamentally different chemistry from TPE. Its polymer backbone is built from alternating silicon and oxygen atoms (siloxane bonds), compared to the carbon-carbon backbone of TPEs and most organic polymers. This silicon-oxygen backbone is what gives silicone its extraordinary thermal stability and chemical resistance. When comparing tpe vs silicone rubber at the molecular level, this backbone difference explains nearly every performance distinction between the two materials.
Silicone is a thermoset: once mixed and cured, the polymer chains form permanent covalent crosslinks. You cannot re-melt cured silicone. If a silicone part comes out of the mold with defects, it goes to landfill — there is no regrind option.
Types of Silicone for Manufacturing
- Liquid Silicone Rubber (LSR): A two-component system (A and B parts) that cures in a heated mold. Low viscosity before curing allows filling of complex, thin-walled geometries. Dominant in medical devices, baby products, and precision seals.
- High Consistency Rubber (HCR/Solid Silicone): Processed like traditional rubber — milled, preformed, and compression or transfer molded. Used for larger seals, gaskets, and industrial components.
- Room Temperature Vulcanizing (RTV) Silicone: Cures at ambient temperature. Used for mold-making, potting, and low-volume prototyping.
LSR processing requires specialized equipment: refrigerated material storage, precision metering pumps for the A/B mix ratio, and heated molds maintained at 270-450°F. The tooling is more expensive than standard thermoplastic tooling, and cycle times run longer due to the curing reaction.
Silicone wins on absolute performance. But every manufacturer should ask: does my application genuinely need this level of performance, or am I over-specifying my material costs?
Key Differences Between TPE and Silicone
Understanding the tpe silicone difference is essential — these materials look and feel similar but perform very differently where it counts. Here is how they stack up head to head.
Temperature Resistance
Temperature is the single clearest dividing line between TPE and silicone.
- TPE: Continuous use range of -40°C to 120-150°C, depending on the specific TPE type. TPE-S grades top out around 100-120°C. TPEE can handle brief excursions to 170°C. Above these limits, TPE undergoes accelerated thermal aging — it becomes brittle, cracks, and loses elasticity.
- Silicone: Continuous use from -60°C to 200-260°C. Specialized grades withstand up to 300°C. Silicone has no true melting point — it remains solid until combustion occurs around 450°C. At extreme cold, silicone retains flexibility when TPE has stiffened significantly.
Rule of thumb: If your part faces sustained temperatures above 120°C, the TPE vs silicone question is already answered in favor of silicone.
Mechanical Properties
| Property | TPE | Silicone |
|---|---|---|
| Tensile Strength | 3-25 MPa (varies widely by type) | 5-12 MPa |
| Elongation at Break | 300-800% | 200-900% |
| Compression Set (22 hr at 70°C) | 20-45% | 5-15% |
| Tear Strength | Good to Excellent | Moderate to Good |
| Abrasion Resistance | Excellent (TPU), Moderate (TPE-S) | Moderate |
Compression set is where silicone has a decisive advantage. A silicone gasket compressed for years will recover near its original shape when the load is removed. A TPE gasket under the same conditions may take a permanent set and lose sealing pressure. For static seals in long-life products, this single property difference often justifies the silicone premium.
Chemical, UV, and Environmental Resistance
Silicone’s siloxane backbone provides inherent resistance to UV radiation, ozone, and a broad range of chemicals — no additives required. TPE resistance is formulation-dependent:
- TPE-S/SEBS: Good general chemical resistance. Degrades with prolonged UV or oil exposure unless stabilized.
- TPU: Excellent abrasion resistance but vulnerable to hydrolysis (degradation in hot, wet environments) and UV.
- TPV: Best chemical and UV resistance in the TPE family. Approaches EPDM rubber performance.
For outdoor applications or components exposed to industrial fluids, TPV may provide sufficient performance at a material cost below silicone. For severe chemical environments, silicone remains the benchmark.
Biocompatibility and Regulatory Compliance
This factor is critical for medical device, food contact, and baby product manufacturers.
Silicone is the established gold standard. Platinum-cured medical-grade LSR meets USP Class VI, FDA 21 CFR 177.2600, and ISO 10993 standards with minimal extractables or leachables. Regulatory pathways are well-documented, and test data is widely available from major silicone suppliers.
TPE offers medical-grade formulations that meet ISO 10993 for cytotoxicity, sensitization, and irritation. It is latex-free, making it suitable for products where latex allergy is a concern. However, TPE biocompatibility is formulation-dependent, and each specific grade requires its own validation testing. The regulatory burden for TPE medical applications is higher than for silicone because the data is less standardized.
For single-use medical devices, TPE often wins on cost and processability. For long-term implants or multi-use surgical tools, silicone’s established regulatory profile and chemical inertness justify the additional cost.
Recyclability and Sustainability
Maria, a procurement director at a European automotive supplier, faced an unexpected requirement in 2025: her company’s largest OEM customer demanded that all Tier 1 supplier materials show a documented end-of-life recycling pathway. Silicone seals in the door assemblies failed this requirement — there was no commercially available recycling stream for cured silicone. The solution was a switch to TPV, a thermoplastic vulcanizate that delivered silicone-comparable compression set performance while meeting the OEM’s recyclability mandate.
This is the sustainability difference that increasingly matters:
- TPE: Fully thermoplastic. Production scrap can be reground and re-introduced at 10-30% ratios without significant property loss. End-of-life parts can enter standard plastic recycling streams. Carbon footprint is lower.
- Silicone: Thermoset — no recycling pathway exists at commercial scale. Scrap goes to landfill or, in limited cases, incineration with energy recovery. Chemical recycling technology is under development but not commercially available.
If your customers have published sustainability targets or face regulatory pressure around circular economy compliance, TPE’s recyclability is a strategic advantage that should factor into your TPE vs silicone calculation.
Need to verify which material meets your specific regulatory requirements? Contact our polymer specialists for material certifications and compliance documentation tailored to your industry standards.
TPE vs Silicone: Processing and Manufacturing
The material itself is only part of the equation. How it runs on your production floor determines your true cost per part.
Injection Molding Comparison
| Factor | TPE | LSR (Liquid Silicone Rubber) |
|---|---|---|
| Equipment | Standard injection molding machine | Specialized LSR machine with metering pump |
| Mold Temperature | 70-120°F (cold mold) | 270-450°F (hot mold) |
| Material Storage | Room temperature, standard hopper | Refrigerated A/B components |
| Cycle Time | 30-90 seconds typical | 60-180 seconds (curing dependent) |
| Post-Processing | None required | Post-curing may be needed for regulatory compliance |
| Scrap Recovery | Regrind and reuse (10-30%) | None (thermoset) |
| Mold Cost | 5,000−5,000−20,000 | 8,000−8,000−30,000 |
| Yield Rate | 95-99% | 98%+ (after process optimization) |
TPE processes on the same equipment you already use for ABS, polypropylene, or polycarbonate. You can switch materials on the same press. LSR requires dedicated equipment or at minimum a specialized barrel and screw, plus a precision metering system for the two-component mix.
Cycle time is the hidden cost multiplier. When a TPE part cycles in 45 seconds and the LSR equivalent requires 120 seconds, the silicone part costs you 2.7 times more in machine time alone — even before factoring in the higher material cost and zero scrap recovery.
Andreas, a production manager at a German medical device contract manufacturer, learned this firsthand. His team ran a connector component in both TPE and LSR for comparison, using the same 8-cavity mold design.
The TPE version produced 640 parts per hour. The LSR version produced 240 parts per hour.
After accounting for machine amortization, operator labor, and material cost, the TPE part landed at $0.28 per unit versus $0.53 for LSR. The LSR part had slightly better compression set on the data sheet, but both met the customer’s specification. The customer chose TPE and saved $112,000 annually on that single component.
Overmolding Capabilities
TPE is the clear winner for multi-material, soft-touch applications. It bonds chemically to polypropylene, ABS, polycarbonate, and nylon without primers or adhesives. Two-shot molding — where the rigid substrate is molded in the first station and TPE is injected over it in the second — is a mature, reliable process.
Silicone overmolding onto thermoplastics is considerably more difficult. The high mold temperatures required for LSR cure can soften or deform the thermoplastic substrate. Most successful silicone-to-plastic bonds require either mechanical interlocking features designed into the part geometry, or primer/adhesive systems that add cost and processing steps.
For power tool grips, toothbrush handles, phone cases, and any application where a rigid core needs a soft exterior, TPE is the pragmatic choice.
Extrusion
Both materials extrude well. TPE tubing, profiles, and cable jackets run on standard single-screw extruders. Silicone extrusion typically requires a post-cure oven — a continuous vulcanization line — which adds capital cost and floor space. For general-purpose flexible tubing, TPE offers simpler processing. For medical peristaltic pump tubing that must withstand thousands of compression cycles, silicone’s superior fatigue life often wins despite the more complex extrusion setup.
When to Choose TPE vs Silicone: A Decision Framework
Use this structured framework to narrow your material choice before consulting supplier specifications.
Choose TPE When:
- Your operating temperature stays below 120°C
- You are producing at high volumes and cycle time directly impacts your unit cost
- The part will be overmolded onto PP, ABS, PC, or nylon
- Recyclability or end-of-life recovery matters to your customer
- You need to process on existing standard injection molding equipment
- Your product is single-use or disposable (bioprocessing assemblies, packaging, consumer items)
- Raw material cost is a primary design constraint
- You need rapid prototyping — TPE can be 3D printed
Choose Silicone When:
- Sustained operating temperature exceeds 150°C
- The component requires repeated steam sterilization (50+ autoclave cycles)
- Biocompatibility is mission-critical (long-term implant, infant care, food contact)
- Compression set must be near zero for the product’s entire service life
- The part faces long-term UV exposure without protective coatings
- Chemical inertness across diverse media is non-negotiable
- The application is safety-critical and field failure is unacceptable — silicone’s longer performance history in regulated industries provides additional validation confidence
TPE vs Silicone by Industry
Medical Devices and Healthcare
Medical material selection depends more on sterilization method and device risk class than any other factor.
TPE Applications: Single-use bioprocessing tubing, syringe plunger tips, respiratory masks, disposable fluid transfer connectors, blood collection set components. TPE’s weldability makes it dominant in single-use bioprocessing systems where sterile connections are created by welding tubing segments together.
Silicone Applications: Long-term implantable components, multi-use surgical instrument handles, peristaltic pump tubing in pharmaceutical filling, respiratory circuit components for anesthesia machines, infant care products. Silicone withstands ethylene oxide, gamma radiation, and steam autoclave sterilization for 50+ cycles without meaningful property degradation.
Decision Driver: Is your device single-use or reusable? TPE wins single-use on cost. Silicone wins reusable on sterilization durability.
Automotive Manufacturing
TPE Applications: Interior soft-touch surfaces (dashboard skins, console armrests), window and door weather seals (TPV), cable insulation, air duct bellows, floor mat backing. TPV has become the dominant material for automotive weather seals, offering EPDM-like performance with thermoplastic processability.
Silicone Applications: Turbocharger and intercooler hoses, engine gaskets exposed to continuous high heat, EV battery pack thermal interface materials, sensor seals. As electric vehicles introduce higher continuous operating temperatures in power electronics, silicone is seeing expanded use in battery and charging system sealing applications.
Decision Driver: Interior or exterior? Under-hood or cabin? For exterior sealing, TPV competes strongly. For the hottest engine-bay locations, silicone is the answer.
Consumer Electronics
TPE Applications: Smartphone cases, wearable straps, overmolded power tool grips, laptop feet and gaskets, cable jackets, earbud tips. TPE’s ability to bond to PC and ABS housings in a two-shot molding process makes it nearly universal in consumer electronics soft-touch applications.
Silicone Applications: Premium smartwatch bands, keyboard covers, high-temperature internal gaskets, waterproof USB port covers. Silicone is chosen when the consumer expects premium tactile feel paired with long-term durability, or when internal component heat requires material stability beyond TPE’s range.
Decision Driver: Cost and overmolding favor TPE for mass-market electronics. Premium positioning and durability expectations favor silicone.
Industrial Seals, Gaskets, and Tubing
TPE Applications: General-purpose fluid transfer tubing, food contact conveyor belts (TPE-S), industrial door seals, equipment vibration dampers.
Silicone Applications: Chemical processing line seals, food-grade steam-resistant gaskets, high-purity pharmaceutical transfer tubing, peristaltic pump lines in pharmaceutical and biotech manufacturing.
Decision Driver: Chemical aggressiveness of the media being sealed or conveyed. Mild environments favor TPE. Harsh chemicals, steam, or ultra-pure media favor silicone.
TPE vs Silicone Cost Comparison: Beyond the Price Per Kilogram
When evaluating a thermoplastic elastomer vs silicone for injection molding, the decision goes beyond raw material cost. Cycle time, tooling investment, and scrap recovery all shift the economics.
Raw Material Cost
| TPE | Silicone / LSR | |
|---|---|---|
| Price per kg | 2.50−2.50−5.00 | 4.00−4.00−8.00 |
| Specific Gravity | ~0.89 | ~1.12 |
| Parts per kg (relative) | ~12% more parts | Baseline |
The specific gravity difference is frequently overlooked. TPE’s lower density means each kilogram of material produces roughly 12% more parts than a kilogram of silicone in the same mold. Even if the TPE and silicone were priced identically per kilogram — which they are not — TPE would still win on parts-per-dollar due to density alone.
Tooling and Processing Cost Comparison
| Cost Factor | TPE | LSR |
|---|---|---|
| Mold Tooling | 5,000−5,000−20,000 | 8,000−8,000−30,000 |
| Processing Cost per Part | 0.05−0.05−0.15 | 0.15−0.15−0.30 |
| Estimated Total (10,000 Parts) | 3,000−3,000−6,500 | 5,500−5,500−11,000 |
| Scrap Value | Recovered (regrind usable) | Zero (landfill) |
| Equipment | Standard; likely already on your floor | Specialized; may require capital purchase |
For a startup or contract manufacturer adding a new product line, the equipment barrier alone often decides the TPE vs silicone question in favor of TPE. An injection molder that already runs polypropylene and ABS can add TPE production with zero additional capital. Adding LSR requires either purchasing dedicated LSR equipment or outsourcing to a silicone specialist.
Ready to evaluate TPE pellets for your next production run? Request a competitive quote from our polymer team and receive pricing with full material specifications within 24 hours.
How to Source TPE and Silicone: Supplier Selection Checklist
Once you have settled the tpe vs silicone question and chosen your material, selecting the right supplier determines whether you capture the material’s theoretical advantages in practice.
Quality Certifications to Verify:
- ISO 9001 (minimum baseline for quality management)
- ISO 13485 (required for medical device material supply)
- Material-specific certifications: FDA 21 CFR, EU 10/2011, USP Class VI, ISO 10993, RoHS, REACH
Pellet Quality Indicators:
- Consistent melt flow index (MFI) from batch to batch — variations cause process instability
- Uniform pellet size and shape — inconsistent pellet geometry leads to uneven melting and fill variation
- Proper drying and moisture-protective packaging upon shipment
Logistics and Commercial Factors:
- Lead time reliability and minimum order quantities
- Global shipping capability — critical if your manufacturing locations span multiple regions
- Technical support availability: Can the supplier help you select the right Shore hardness grade for your specific mold geometry and part requirements?
Suzhou Yifuhui New Material Co., Ltd. supplies TPE and TPV pellets backed by ISO-certified quality control, a comprehensive polymer portfolio, and global logistics coverage. For high-temperature applications, we also offer engineering plastics such as PEI for electronics and performance-critical components. Our technical team responds to material inquiries within 24 hours — whether you need application guidance, a compliance data sheet, or a competitive quote for your next production order.
Frequently Asked Questions
Is TPE better than silicone?
Neither material is better in absolute terms. TPE delivers advantages in cost efficiency, processing speed, overmolding capability, and recyclability. Silicone delivers advantages in extreme temperature resistance, biocompatibility, compression set performance, and long-term chemical stability. The right material depends entirely on your application’s operating conditions, regulatory requirements, production volume, and cost targets.
Can TPE replace silicone?
In many applications, yes. For moderate-temperature consumer goods, automotive interiors, single-use medical devices, and cost-sensitive industrial components, TPE can effectively replace silicone while reducing per-part cost by 30-50%. However, TPE cannot replace silicone in applications requiring sustained temperatures above 150°C, repeated steam sterilization beyond 20 cycles, or validated long-term biocompatibility for implanted devices.
What is the difference between TPE and silicone?
The fundamental difference is chemical: TPE is a thermoplastic copolymer with physical crosslinks that can be re-melted and re-processed. Silicone is a thermoset with permanent chemical crosslinks that cannot be re-melted once cured. This single difference cascades into all the downstream distinctions in processing method, recyclability, cost, and application fit.
What is TPE vs silicone heat resistance?
TPE withstands -40°C to 120-150°C in continuous use, with some TPEE grades reaching 170°C briefly. Silicone withstands -60°C to 200-260°C in continuous use, with specialized grades extending to 300°C. If your application requires sustained exposure above 150°C, silicone is the only viable choice between these two options.
Is TPE cheaper than silicone?
Yes. TPE raw material costs 2.50−2.50−5.00/kg compared to silicone at 4.00−4.00−8.00/kg. When tooling, processing cycle time, and scrap recovery are included, TPE parts typically cost 40-55% less than equivalent LSR parts, with tooling investment roughly 40% lower.
Is silicone more durable than TPE?
In demanding environments, yes. Silicone demonstrates superior compression set resistance (maintaining sealing force over years), better UV and ozone resistance without additives, broader chemical resistance, and significantly better thermal aging characteristics. In moderate environments without extreme temperatures or chemical exposure, TPE’s durability is adequate for most applications.
Can TPE be injection molded?
Yes — TPE is designed for standard injection molding. It processes on conventional injection molding machines with cold molds (70-120°F), fast cycle times, and the ability to regrind and reuse scrap. This is one of TPE’s primary advantages over silicone.
Is TPE recyclable?
Yes. As a thermoplastic, TPE can be reground, re-melted, and re-processed. Production scrap recovery rates of 10-30% regrind incorporation are standard practice, and end-of-life TPE parts can enter conventional plastic recycling streams. Silicone cannot be economically recycled at commercial scale.
Making the Right Choice for Your Manufacturing Project
The TPE vs silicone decision ultimately comes down to a series of specific questions about your application: What temperature does it face? How is it sterilized? What chemicals does it touch? What volume are you producing? What does it cost to be wrong?
When both materials can meet your technical requirements, TPE offers a 30-50% cost advantage, faster cycle times, simpler processing on standard equipment, and the sustainability benefit of full recyclability. When your application demands the performance envelope that only silicone delivers — extreme temperatures, repeated sterilization, validated biocompatibility — the silicone premium pays for itself in reliability and regulatory confidence.
The wrong call costs more than money. It costs lead time, production capacity, and sometimes market position — as Chen’s team in Shenzhen discovered.
Need expert guidance on material selection or sourcing? Contact Suzhou Yifuhui New Material Co., Ltd. Our polymer specialists can help you evaluate TPE, TPV, and engineering plastic pellets for your specific manufacturing application. Request a competitive quote and receive a detailed response within 24 hours.
