In the field of materials technology, some materials make a huge difference in industries, but they generally do it without a big hoorah as compared to other more famous materials. One of those materials is Ultra-High Molecular Weight (UHMW) polyethylene. This is a material with high-molecular-weight thermoplastic properties which means it is resistant to wear in an outstanding way, has high strength, and minimal friction. UHMW plastic has become a required part of the medical industry, and by the inclusion of this material in the making of heavy-duty machinery, its applications are even wider, going beyond the limits of implant-only territories. This comprehensive manual will consider the properties, manufacturing methods, and various uses of UHMW plastic to show why it has grown into a popular option for tackling difficult engineering problems.
Understanding UHMW Plastic
What is UHMW Plastic?
The UHMW plastic, short for Ultra High Molecular Weight Polyethylene, is a particular form of polyethylene with very long polymer strands. A high-density polyethylene (HDPE) with a standard molecular weight of 100,000 – 500,000 g/mol is of flimsy density compared to UHMW that has a molecular weight of 3.5 – 7.5 million g/mol. Atoms’ cross-links resulting in long flow chains are the reason why the material is so tough and has great resistance to abrasion and impact.
The structure of UHMW allows it to effectively transfer and dissipate load, which prevents localized stress from causing fractures. Think of it like a tightly woven fabric where the long fibers distribute force across a wider area, making it incredibly difficult to tear. This molecular arrangement results in a material that is self-lubricating, highly durable, and resistant to many corrosive chemicals.
Properties of UHMW-PE
The key characteristics of UHMW plastic make it suitable for a wide array of demanding applications:
- High Abrasion Resistance: UHMW is one of the most abrasion-resistant thermoplastics available, outperforming even carbon steel in some wear tests. This makes it ideal for components that experience constant friction, such as conveyor belt parts and chute liners.
- Low Coefficient of Friction: With a coefficient of friction comparable to Teflon (PTFE), UHMW surfaces are incredibly slick. This self-lubricating property reduces energy consumption in moving parts and prevents material buildup.
- Exceptional Impact Strength: UHMW can absorb a high amount of energy before fracturing, giving it the highest impact strength of any thermoplastic currently produced. It maintains this strength even at extremely low temperatures.
- Chemical Resistance: It is highly resistant to a wide range of corrosive chemicals, including acids and alkalis, which makes it suitable for use in harsh industrial environments.
- Moisture Resistance: UHMW has very low moisture absorption, ensuring its properties remain stable in wet or humid conditions and preventing swelling or degradation.
Comparison with Other Plastics
When compared to other common engineering plastics, the advantages of UHMW become clear.
Manufacturing UHMW Plastic Sheets
Process of Creating UHMW Sheets
UHMW sheets are typically produced through compression molding or ram extrusion.
Compression Molding: In this process, UHMW powder is placed into a large mold. The mold is then heated under immense pressure, causing the individual polymer particles to fuse together into a solid block or sheet. The material is then cooled under controlled conditions to minimize internal stresses.
Ram Extrusion: For continuous profiles and rods, ram extrusion is used. A hydraulic ram pushes the UHMW powder through a heated die. The combination of heat and pressure consolidates the material into the desired shape.
After the initial forming, large blocks are often skived or cut into thinner sheets of precise thickness.

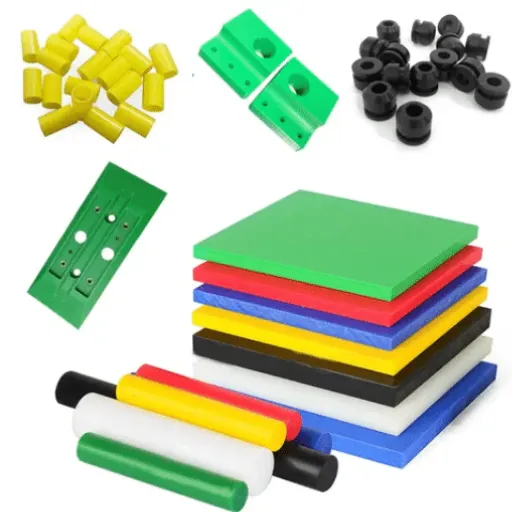

Types of UHMW Plastic Sheets Available
Manufacturers offer several grades of UHMW sheets to meet specific application needs:
- Virgin Grade: This is the standard, FDA-compliant grade of UHMW, suitable for food contact applications and general-purpose use.
- Reprocessed Grades: Made from recycled UHMW materials, reprocessed grades offer a more cost-effective option for less demanding applications where color and FDA compliance are not primary concerns.
- Enhanced Grades: Additives can be incorporated into UHMW to enhance certain properties. For example, glass-filled UHMW offers increased stiffness and dimensional stability, while oil-filled grades provide an even lower coefficient of friction. Anti-static grades are also available for applications where static discharge is a risk.
Key Considerations in UHMW Sheet Production
Quality control is critical in UHMW manufacturing. The heating and cooling cycles must be precisely managed to ensure complete fusion of the polymer particles and to prevent warping or internal voids. Post-production annealing (a heat treatment process) is often performed to relieve internal stresses created during manufacturing, which improves the material’s dimensional stability and flatness.
Industrial Applications of UHMW Plastic
Uses in the Manufacturing Sector
In manufacturing and material handling, UHMW is a workhorse. Its low friction and high abrasion resistance make it perfect for:
- Conveyor Components: Chain guides, wear strips, and star wheels made from UHMW reduce friction, lower energy costs, and extend the life of conveyor systems.
- Chute and Hopper Liners: Lining equipment with UHMW sheets prevents bulk materials like coal, grain, or sand from sticking and causing blockages. The slick surface ensures a smooth, continuous flow.
- Bearings and Bushings: Self-lubricating UHMW bearings can operate without external lubrication, reducing maintenance and eliminating the risk of contamination from grease or oil.
UHMW in Automotive Engineering
In the automotive industry, UHMW contributes to lighter, more efficient vehicles. It is used for gears, bushings, and wear pads in various mechanical systems. Its ability to reduce noise and vibration is also a significant benefit in creating a smoother and quieter ride.
Applications in Medical Devices
Because it is biocompatible and incredibly durable, UHMW has become the standard material for artificial joints. For decades, it has been used for the acetabular cup in hip replacements and the tibial component in knee replacements. The material’s low friction and wear resistance allow these implants to function smoothly for many years, significantly improving the quality of life for millions of people.

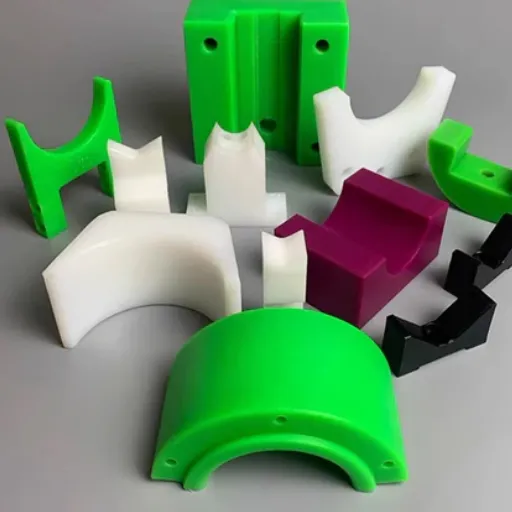

Advantages of Using UHMW Plastic
Low-Friction Properties
The self-lubricating nature of UHMW is one of its most significant advantages. In machinery, this translates to reduced energy consumption, as less force is needed to overcome friction. It also eliminates the need for liquid lubricants in many cases, which simplifies design, reduces maintenance costs, and is cleaner for industries like food processing and pharmaceuticals.
Durability and Resistance to Wear
UHMW’s exceptional toughness makes it last longer in high-wear environments. Components made from UHMW can often outlast those made from metal, especially in applications involving sliding abrasion. This long service life means less downtime for equipment repairs and lower replacement costs.
Benefits in Cost-Effectiveness and Longevity
While the initial cost of UHMW may be higher than some other plastics, its longevity makes it a highly cost-effective choice. The extended lifespan of UHMW parts, combined with reduced maintenance and energy savings, results in a lower total cost of ownership over the life of the equipment.
Innovative Applications of UHMW
Use of UHMW in Outrigger Pads
Heavy equipment like cranes and concrete pumps use outriggers to stabilize themselves during operation. UHMW is an ideal material for the pads placed under these outriggers. The pads need to be strong enough to support immense weight without cracking or breaking, yet light enough to be handled by operators. UHMW outrigger pads are waterproof, resistant to chemicals found on job sites, and extremely durable, providing a safe and reliable foundation for heavy machinery.

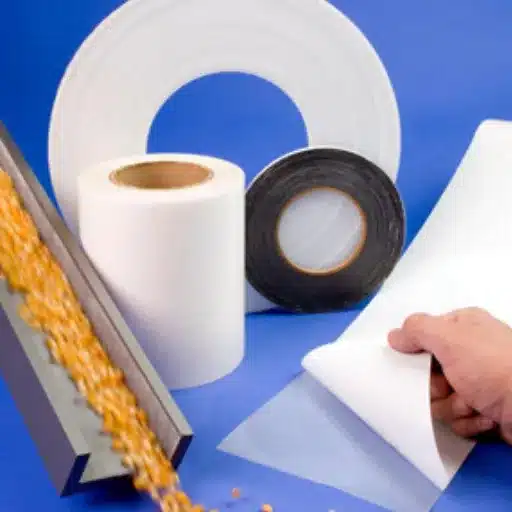

Application of UHMW Tape
UHMW is also available in tape form, with an adhesive backing. This allows its low-friction, high-wear properties to be applied to almost any surface. UHMW tape is used to line drawers and slides, reduce squeaks and rattles in automotive interiors, and protect surfaces from scratching and wear. It offers a quick and easy solution for friction and wear problems in a multitude of applications.
Reprocessing UHMW for Sustainable Solutions
Sustainability is a growing priority across all industries. The ability to reprocess UHMW from industrial scraps and post-consumer parts is an important aspect of its lifecycle. Reprocessed UHMW provides a cost-effective and environmentally friendly alternative for applications that do not require virgin material. This practice reduces waste and conserves resources, aligning with circular economy principles.
Reference Sources
UHMW Plastic | UHMWPE Properties & Material Uses – Curbell Plastics
Why Engineers Trust UHMW-PE: A Deep Dive into Its Technical Advantages – Global Polymer
Most Common Applications of UHMWPE – Epol
UHMW Plastic: High-Performance Material for Industrial Applications – Bee Plastic
Frequently Asked Questions (FAQs)
Are uhmw plastic sheets suitable for abrasive and high-impact environments in material applications?
UHMW plastic sheets have been specifically engineered to withstand harsh and high-impact environments, thus offering better abrasion and impact resistance than most classic plastic materials. At the same time, their very low coefficient of friction and self-lubricating properties decrease the wear between the engaged parts which makes them suitable for use within conveyor systems, chute liners, and hopper surfaces. UHMW is known to show resistance to chemicals and low water uptake, thus allowing it to be utilized even under the most adverse or damp conditions. For the most challenging conditions and specialty grades, such as Tivar® or Polystone®, which can provide customized performance, one can turn to them. In general, UHMW sheets are a cost-effective way of being able to extend the life of components and thus enhance the reliability of systems.
What is the impact of recycling or reprocessing on UHMW’s performance and material applicability?
Recycling UHMW can have as a result the maintaining of several of virgin-like good material properties, like e.g. the wear-resistance and low-friction properties, but the reprocessing itself must be done very carefully so that the properties of impact strength and tensile performance will remain reasonably well. Processing streams, however, are often normalized with the addition of new high-end molecular-weight polythene. The outcome would be consistent mechanical performances that are required for categories which are not very needy and at a lower cost. Even with the reprocessing buses, UHMW the—reprocessed UHMW material, may be a bit modified of thermal, or surface properties however it is still, to some extent, applicable in a number of industries for the fabrication of wear parts, liners, or just for specific conveyor components. The use of reprocessed material is a promising way of cutting costs and at the same time lessening the impact on the environment due to the use of certain material applications if the chosen grade is right. In the case of high-strength or food contact situations, the use of certified primary or environmentally friendly UHMW grades is more likely to be advised.
How do materials with uhmw sheet plastic differ from other plastic sheets?
UHMW sheet material applications are better than many other plastic sheets due to their ultra-high molecular weight polyethylene structure, which provides improved bearing and wear resistance. On the other hand, UHMW outperforms HDPE or PTFE in terms of the other properties like impact resistance or friction coefficient. Thus it is a suitable material for sliding applications and chute liners often. Users have access to food-grade and metal-detectable UHMW grades in the market and to the respective properties suitable for both food and pharmaceutical applications. The material totally shows up as a chemical and thermal hotlosion-resisting candidate for high-speed conveyors; hence for this type of purpose, machine liners made of it can be used. At the meantime, UHMW has been a suggested material for most animal feed applications knowing that it meets stringent regulations for the food and drug industries. Consequently, the UHMW material can only be a direct rotary valve liner in the chute where a polymer (UHMW) interface with certain bulk material causes such difficulty as static electricity and consequently the formation of a hole in a certain location after some months.
What kinds of UHMW grades are suitable for food processing?
Customly formulated, UHMW materials come in food processing-compliant grades. They are specifically crafted to meet hygiene and safety standards such as being FDA compliant. In situations where beverage processing, packaging machinery, and hopper liners are involved, these grades keep their property of self-lubrication and extremely low coefficient of friction. These grades are available in UV-stable and anti-static forms. This helps to reduce contamination risks and improve performance around sensitive equipment. Being UV-stable and anti-static are good choices for companies wanting to minimize the effects of their environment and for a better machine-based operation. Low moisture absorption and chemical resistance of UHMW make it a popular material in washdown environments typical of the food and beverage industries. One way of ensuring that a UHMW product is compliant and at the same time has a wear resistance that lasts long is selecting the appropriate grade.
Can UHMWPE be used in machine-component applications such as wear strips and bearings?
Yes, ultra-high-molecular-weight polyethylene is said to be the best material for wear strips and bearings in machinery due to its low friction, bearing, and wear characteristic improvements. The product has a very high impact resistance and long-lasting service cycle and that’s why it’s selected for the decreasing of noise and absorbing of shock comparing to metallic materials. UHMW’s sliding properties and lubricity combine to make it the best option for chain guides, conveyor components, and sprockets in the material handling systems. It is also very easy to work with UHMW by shaping into custom shapes like wear-resistant liners and outrigger pads. A vast number of industries have made UHMW a standard practice in their maintenance operations for improving the service life and decreasing the interval of maintenance due to their higher rate of UHMW utilization.
