Ultra-High-Molecular-Weight Polyethylene, or UHMWPE, is one of the most respected polymers in the field of industrial materials. It is known to exceed the average level of plastics in terms of toughness, slipperiness, and immunity to abrasion and chemicals. Its rare characteristics have given it the status of an element that is impossible to replace for industries ranging from manufacturing and aerospace to medical and food processing.
This guide will cover UHMW properties in detail. Will we shed light on things like it? Molecular structure, compare it with other plastics that are mainly used, and mention its major applications in different industrial sectors. The matter of the latest technological march, its co-production with carbon fiber, will also be among the issues we rummage through. Moreover, there will be conversations about whether its use still has any drawbacks, or whether it is all about trends already well-established and well-known. Getting to the bottom of what makes this material what it is, the firms will be in a better position to achieve the same level of efficiency through innovation.

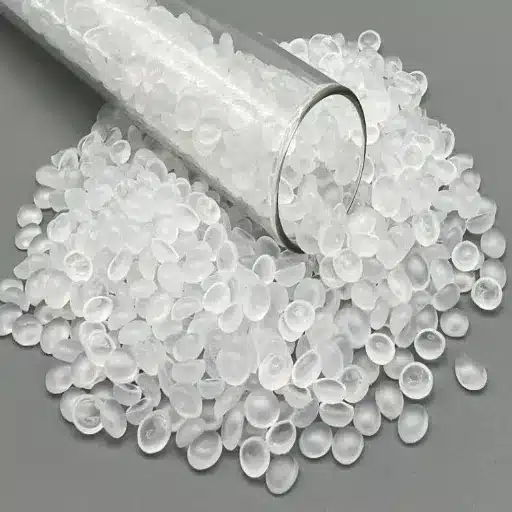

Understanding UHMW Polyethylene
What is Ultra-High-Molecular-Weight Polyethylene?
UHMWPE is a type of thermoplastic polyethylene. The unique feature of UHMWPE is its extremely long molecular chains — this is also the cause of its high molecular weight, typically in the range of 3.5 to 7.5 million g/mol. For example, the molecular weight of standard high-density polyethylene (HDPE) is usually between 100,000 and 500,000 g/mol. These long chains are able to transfer the load more effectively to the polymer backbone by helping the intermolecular interactions become stronger. The product is a material that is both very tough and durable.
One of the differences between UHMWPE and other plastics is that UHMWPE does not melt and behave like a liquid. Instead, it melts and can be molded using a variety of processes, such as compression molding, ram extrusion, and sintering. Its high molecular weight necessitates processing in this way.
Key Characteristics of UHMW Plastic
The defining UHMW polyethylene properties that make it so valuable include:
- High Abrasion Resistance: The material is extraordinarily wear-resistant, surpassing the lifespan of many metals in abrasive environments.
- Low Coefficient of Friction: The material’s surface is smoother than Teflon, reducing friction and energy waste during the movement of parts.
- High Impact Strength: UHMW plastic is capable of preserving a massive amount of energy before breaking, which makes it one of the most impact-resistant plastics. Thermoplastics.
- Excellent Chemical Resistance: It can withstand most corrosive chemicals and does not pose a problem with acids or alkalis.
- Zero Moisture Absorption: It does not absorb water, ensuring dimensional stability under wet conditions.
- FDA and USDA-compliant: There are many UHMWPE grades that are similar to those approved for food contact, thus making it usable in food processing.
Comparing UHMWPE with Other Plastics
When one compares UHMW-PE with other plastic materials, the former’s strengths become quite apparent, even in highly demanding applications.
UHMWPE vs. HDPE: Although both are forms of polyethylene, UHMWPE is by far the best in terms of wear resistance and impact strength, thanks to its higher molecular weight. HDPE is a good deal simpler to shape and less expensive, thus it is more appropriate for the general-purpose process of manufacturing like bottles and containers.
UHMWPE vs. Nylon: Nylon has quite good strength and wear resistance, but it is a moisture absorber, which can lead to significant dimensional stability and mechanical property issues. On the other hand, water does not get absorbed by UHMWPE thus giving it a big advantage in the wet or humid seasons.
UHMWPE vs. Teflon (PTFE): In the comparison of UHMWPE to Teflon, it can be found out that the latter has a lower coefficient of friction and is also much softer. However, the wear resistance and impact strength of Teflon are significantly lower. UHMWPE, on the other hand, can provide a combination of low friction and durability, which Teflon usually claims.
UHMWPE vs. Acetal (POM): Acetal is a strong, rigid material with good mechanical properties, but it has lower impact and abrasion resistance than UHMWPE. Acetal is mainly used to make precise parts because it is very easy to machine.
Every plastic has its suitable application; however, UHMW polyethylene is often the first choice for applications that demand extreme strength and durability.

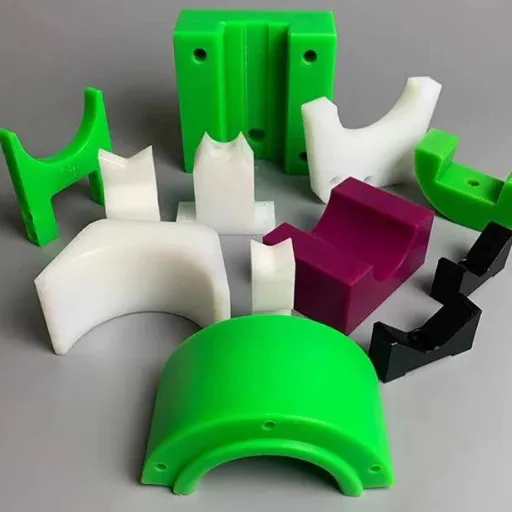

Material Properties of UHMW Polyethylene
Molecular Structure and Its Effect on Performance
The term “ultra-high-molecular-weight” in UHMWPE’s name is the source of the polymer’s tenacity. The polymer chains are incredibly long, and they do not pack very closely and have strong van der Waals forces between them. This arrangement is why the chains are designed to effectively absorb and dissipate impact, resulting in high impact strength and abrasion resistance. The long chains are entangled in such a way that they prevent flow when heated; this is why UHMWPE does not melt like other substances. Instead, only specialized methods can be used to process it due to its high viscosity.
Low Resistance to Wear and Friction
One of the most famous properties of UHMW polyethylene is the extremely low coefficient of friction, which is one of the weakest among all polymers. The “self-lubricating” nature of UHMWPE allows UHMWPE parts to operate with very low energy losses and without external lubricants. This, in turn, reduces maintenance costs and is helpful when lubricant contamination becomes a problem, as in the food industry.
Moreover, it boasts extremely high wear resistance. In various sand slurry tests, UHMWPE is eight times more durable than carbon steel. That’s why this longevity and durability feature makes it a perfect choice for components that constantly experience friction and wear, like chute liners, conveyor belt parts, and wear strips.
Impact Strength and Durability of UHMW Material
UHMWPE is considered the material with the highest impact strength among all the heat plastics produced at the time. The plastic is so tricky that it frequently carries the title “indestructible” in conventional Izod impact tests with a notch. The material can take continuous hitting and severe, rapid impacts, is resistant to being broken, even down to cryogenic temperatures. Naturally, UHMW is ideal for dock fender applications, agricultural machinery parts, and armor plating. Its ability to absorb and dissipate energy is why it is widely used to prevent impact damage to equipment and structures.

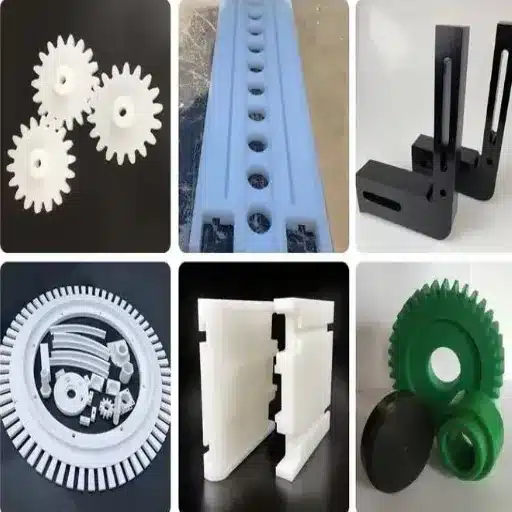

Applications of UHMW Polyethylene in Industry
Use Cases in Manufacturing and Engineering
According to the industry, UHMWPE is a commonly utilized material in manufacturing and engineering. The most common applications are:
- Gears, Bushings, and Bearings: The material is appropriate for this function because it has both lower friction and higher wear resistance.
- Chute and Hopper Liners: Decreasing the rate of wear caused by large and abrasive materials such as coal, sand, and grain and reducing the problem of stuck materials are two reasons why lining the equipment with UHMWPE is preferred.
- Conveyor Components: Noise levels during transportation are reduced, and conveyor belt life is extended due to the use of UHMWPE to produce wear strips, chain guides, and star wheels.
- Dock Fenders and Bumpers: The UHMWPE with such high impact strength can be used in the docking system to reduce the impact of the pressure, thus protecting both the dock and the ship.
Role of UHMWPE in Aerospace and Automotive Industries
Both the aerospace and automotive industries seek lightweight, long-lasting and dependable materials. UHMWPE, to the letter, is the material that perfectly fits all the requirements.
Aerospace: It is used for multiple components within aircraft, such as rollers, guides, and seats, where low weight and high wear resistance are the primary factors. The UHMWPE fibers are also used to produce light ropes and cables.
Automotive: In the automotive sector, it is one of the materials used for timing chain guides, truck bed liners, and suspension system wear pads. Its capacity to mitigate noise and vibration is a further advantage.
Benefits of UHMW Plastic in Food Processing
The Food Processing industry mainly concentrates on hygienic materials that are easy to clean and robust. A large number of UHMW plastics are being certified by the FDA and USDA, thereby designating them as suitable for the food industry.
- Cutting Boards: Cutting boards that are of a commercial grade are usually made of the UHMWPE type of material mainly because it will not dull your knives, also, it is moisture-free and therefore, it is very easy to keep it bacteria-free.
- Food Processing Machinery: High abrasion and corrosive resistance of UHMWPE are utilized to the maximum by the food processing equipment manufacturing. The applications include the material being used, for example, in making the augers, mixing paddles, or guides.
- Bottling and Canning Lines: The star wheels, guide rails, and timing screws made from UHMWPE are designed to provide smooth, quiet operation even during high-speed packaging.

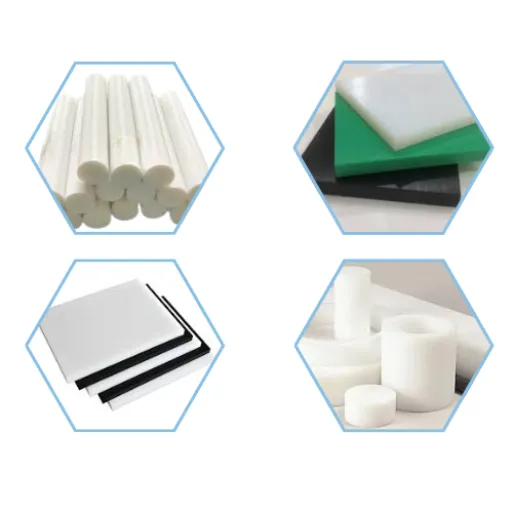

Innovative Reinforcements: Carbon Fiber and UHMW
Combining Carbon Fiber with UHMW Polyethylene
Carbon fiber is well known for its superlative tensile strength, high modulus, and light weight. Blending it with UHMWPE offers the opportunity to make a composite that reflects the qualities of both materials. The carbon fibers provide support and enhance the dimensional stability of the UHMWPE, while the UHMWPE matrix provides toughness and impact resistance.
Enhanced Properties of UHMW Material with Fiber Reinforcement
Adding carbon fibers to UHMWPE can have several benefits:
- Higher Stiffness and Strength: The composite material is much stiffer and can therefore withstand higher loads than non-reinforced UHMWPE.
- Better Creep Resistance: Carbon fibers help the material resist deformation under constant load over time.
- Improved Thermal Conductivity: The introduction of carbon fibers can increase heat dissipation, making it suitable for high-speed applications.
- The Static Dispersion Properties of Carbon fiber can lead to a conductive composite; this feature would be beneficial in industries where static is an undesirable side effect.
Future Trends in Composite Materials
UHMWPE composites are being widely considered in research. The emerging trend is to produce composite materials by mixing other fibers, such as glass or aramid, to achieve the desired properties. Composite materials are programmable ADVANCED options. When the manufacture of these materials in composites is refined, perhaps even more applications of the materials in the growth sector are performance equipment for the sporting world, robots beyond what is currently possible, and the aerospace components of the next but one generation.

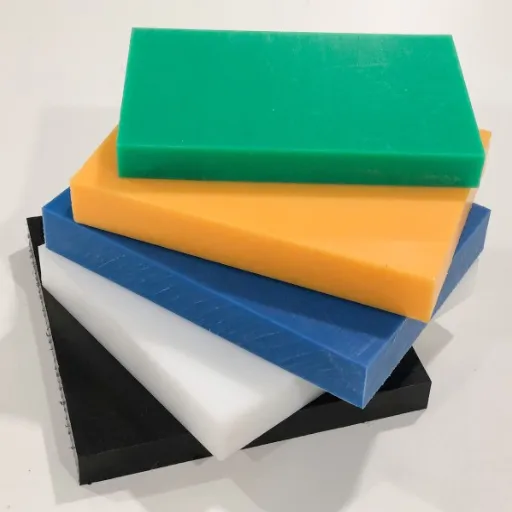

Challenges and Considerations in Using UHMW Polyethylene
Environmental Impact and Recycling of UHMW Plastic
Creating contamination from materials like UHMWPE is an issue that ought not to be overlooked. The reason for making this plastic is the crude oil process, and giving it away can result in more plastic waste. Therefore, UHMWPE is an extreme material, and the parts made from it have a long service life, thereby reducing material consumption.
Recycling UHMWPE is a possibility, but it is not as easy as recycling common plastics like PET or HDPE. The recycling of UHMWPE is also complicated by its very high viscosity, which is, in turn, very difficult to process. The melted-down UHMW plastic is usually directed to much less expensive processing.
Cost Factors and Economic Viability of UHMWPE
UHMWPE is almost always more expensive than the usual plastics, such as HDPE or polypropylene. The specific processing involved in molding and machining it also increases the cost. However, the use of UHMWPE should be evaluated based on the full lifecycle cost. In several applications, the product’s increased longevity and reduced maintenance, with less downtime and fewer replacements, make up for the higher initial cost.
Technical issues and their solutions in applications
There are a couple of technical limitations:
- High Thermal Expansion: UHMWPE has a high coefficient of thermal expansion, which makes it expand and contract with temperature changes considerably. This has to be considered in the design of parts to prevent binding or warping.
- Low Surface Energy: UHMWPE’s low surface energy impedes bonding with adhesives. Mechanical fastening is the most common method of joining UHMWPE parts.
- Machining Challenges: Despite being a machinable material, its softness and tendency to melt under frictional heat require the use of sharp tools, low rotation speeds, and adequate cooling to achieve a good surface finish.
Those engineers who are knowledgeable about the characteristics of UHMW polyethylene can devise the necessary adjustments to overcome all hurdles and ensure the successful implementation of the material.
Reference Sources
UHMW Plastic | UHMWPE Properties & Material Uses – Curbell Plastics
This source provides an overview of UHMW polyethylene’s properties and its suitability for industrial applications.
Material Properties of UHMW Polyethylene – Dielectric Manufacturing
This article discusses the material’s key properties, including chemical resistance, low friction, and noise reduction.
Ultra-high-molecular-weight polyethylene – Wikipedia
The Wikipedia page offers a detailed explanation of UHMW polyethylene’s characteristics, including its resistance to chemicals and low moisture absorption.
Ultra High Molecular Weight Polyethylene (UHMWPE) – Celanese
This guide provides insights into UHMWPE’s applications in highly stressed industrial parts and its unique properties.
Ultra High Molecular Weight Polyethylene – ScienceDirect
ScienceDirect offers an in-depth overview of UHMW polyethylene, including its molecular structure and industrial relevance.
Frequently Asked Questions (FAQs)
What are the structure and properties of ultra-high molecular weight polyethylene (UHMWPE)?
Virtually the most extended polymer chains there are, ultra-high molecular weight polyethylene offers extraordinary mechanical toughness and high abrasion resistance. When compared to the standard PE and HDPE, the friction coefficient is extremely low, and the impact resistance is very high. Moreover, UHMWPE possesses excellent resistance in the presence of abrasive substances and it is one of the few polymers that is not affected by corrosive chemicals. UHMWPE is noted for its chemical resistance and hence, it serves as an excellent choice for bearing and liner applications; it is also tough and very light due to its molecular orientation and high molecular weight. The kinetic energy of possible gear failures and breaking points capable of carrying tubes can be absorbed in such parts, just to name a couple of applications from a vast array. Having said that; in case of doubt, we can constantly readjust the gear safety system and lower the pressure—other than a few liters of oil—still nothing but significant financial savings would be lost.
How much do structure and properties contribute to the abrasion and wear resistance of UHMW sheet?
UHMW sheet is a material wherein the individual polymer chains are so long and intertwined that their structure provides extreme wear resistance and high abrasion resistance. At the same time, UHMWPE offers very smooth sliding due to its negligible friction coefficient. On top of that, if UHMWPE is reinforced or loaded with fiber, it may further increase the resistance to wear and mechanical properties of the polymer part used in the strenuous operations. It exhibits a much higher impact strength and longer service life than HDPE for similar conditions of service. Therefore, UHMW sheet is the ideal material for high-wear applications such as material-handling chutes and conveyor liners, as it is tough and helps reduce downtime.
Can the same logic be applied to medical-grade UHMWPE and its suitability for hip implants in terms of structure and properties?
The article elaborates on the advantageous mechanical properties and low wear of medical-grade UHMWPE—in other words, ultrahigh molecular weight polyethylene with very long chains—that are essential for joints when they are made of replacement components. In the case of hip joints, polyethylene shows the best friction properties combined with great wear resistance, a pair that is absolutely necessary for extreme longevity of total joint replacement therapy when the material used is polyethylene. To combat the problem of high wear, the industry has developed solutions such as the highly cross-linked, irradiated UHMWPE mentioned earlier, along with improvements in the material’s biological properties. Therefore, the UHMWPE molecules and molecular orientation are tailored to minimize abrasivity while still maintaining the required high tensile strength and impact resistance. The result is that the not only pure UHMWPE but also reinforced UHMWPE and UHMWPE composites that are comprised of stabilizers are being applied to fulfill the most stringent requirements of the medical-device field.
How do the structure and properties of plastics affect the choice between ram extrusion and compression molding as the manufacturing process?
Processing choices depend on the structure and properties of the material: Ultra-high-molecular-weight polyethylene (UHMWPE) with its very long polymer chains and consequently higher molecular weight compared to high-density polyethylene (HDPE) has its limitations in terms of conventionally used melt processing; therefore, all the alternative ways such as ram extrusion and compression moulding are quite familiar. Compression molding is the method that allows ionizing molecules in the flow and is ideal for forming UHMW sheets, where maximum stress is involved and elongation is minimal. Thus, the molecular weight is also high, and Straight chains are formed in the polymer matrix, which is responsible for uniform force transmission. Extrusion follows a similar path, with ram extrusion from the thermoplastification stage again the most popular method for making UHMW rods and tubes, although a green melt temperature and a melting zone paint a different picture from what happens in the HDPE case. To tune the UHMWPE matrix properties for different applications, additives, reinforcing agents such as polyethylene fibers, or specialized UHMWPE powders can be used. The impact of the selected technique on the final properties, exemplified by the coefficient of friction, impact resistance and wear resistance, is essential.
What are the arrangements and attributes that wind up making UHMWPE fragile or remain tough
Among the factors that determine the trade-off between durability and brittleness are differences in molecular weight, degree of crystallinity, and the effects of cross-linking or irradiation treatments on the polymer. Pure UHMWPE with extremely long polymer chains, for example, is usually very resistant to impacts and at the same time very tough. Still, if it is oxidized too much or processed incorrectly, it can become brittle, and its mechanical properties drop. The two types of UHMWPE are the most negatively impacted; however, the wear resistance can be significantly improved and a service life comparably longer can be provided with appropriate stabilization. Deciding on the material—unmodified UHMWPE, fiber-filled UHMWPE, or the medical-grade variant—has a significant impact on how well a product will perform in its application as a liner or a bearing in the case of all UHMWPE or parts that involve hip, knee, or other medical implants. When these are done correctly, the processing and treatments will not only render the materials very durable but also impart them with excellent mechanical properties that will not be affected even under heavy loading and abrasive conditions.
