High-Density Polyethylene (HDPE) is one of the world’s most widely utilized types of plastic, appreciated for its strength, adaptability, as well as potential for sustainability. However, with the increase in the focus on environmental concerns, analyzing the mechanical properties of both virgin and recycled HDPE pellets has become essential. How does each material measure up in regard to strength, durability, and performance? This article extensively covers the contrasts and similarities of virgin and recycled HDPE, trying to answer the questions of their applicability. This guide is aimed at manufacturers looking for sustainable materials, as well as engineers assessing performance compromises within a system.
What are Recycled HDPE Pellets?
Recycled HDPE pellets are tiny, granulated parts of high-density polyethylene (HDPE) derived from post-consumer or post-industrial plastic waste. The process includes collection, cleaning, and later melting of the used HDPE materials which are later reshaped into uniform pellets. Recycled HDPE is a sustainable substitute used in manufacturing processes that require HDPE, because it performs comparably to virgin HDPE, but is less harmful to the environment.
How are Recycled HDPE Pellets Produced?
Attaining a sustainable and quality polymer product, the production of recycled HDPE pellets follows a set procedure. It starts with gathering post-consumer and post-industrial waste items such as HDPE bottles, containers, and industrial scraps. After collecting, the plastic waste goes through an initial sorting process to isolate types of HDPE plastics. Sophisticated sorting methods such as infrared sensors and air classifiers are used to increase the accuracy and efficiency of the sorting process.
Removal of contaminants such as labels, food residue, and glue requires substantial effort in the cleaning stage. Achieving consistent and sufficient standards for industry throughput pellets, polymers undergo thorough cleaning. Cleaned HDPE is converted into flakes through shredding, and then into bolts via a melting process in extrusion equipment set to temperatures from 180 to 270 degrees Celsius. Filtration of the melted HDPE oblation occurs during this stage, where non-melting contaminants and other impurities are eliminated.
The hot liquid is then extruded through an extrusion die to make even, cylindrical strands. These strands are quickly cooled and hardened, often in a water bath, and then cut into uniform pellets. The finished pellets of HDPE are inspected, quality tested, and then packaged ready for transport to the manufacturers. Produced data in the industry indicate that the HDPE recycled pellet production increases greenhouse emissions by 50% when compared to virgin HDPE production which makes it a wonderful advancement for sustainable construction.
What are the Key Mechanical Properties of Recycled HDPE?
Recycled HDPE possesses several remarkable mechanical features that make it one of the most versatile materials across various fields. The tensile strength of recycled HDPE will usually lie between 21 to 37 mega pascals (MPa) considering the quality of the recycling process, the additives used, and several other factors. The flexibility of recycled HDPE also exemplifies its strength with a elongation at break often surpassing 500% which makes it ideal for products that require resilience and durability.
Furthermore, the material must also possess impact resistance, and this is evaluated with the do-notched Izod impact strength; for this material, the typical values are in the region of 10 to 15 kJ/m². Moreover, recycled HDPE should also allow a range of densities from 0.93 to 0.96 grams per centimeter cubed (g/cm^3) in order to be lightweight and yet durable. Another critical feature to add is that the material retains exceptional chemical resistance, making it possible to be used in packaging containing detergents, acids, as well as other harsh substances.
Also, another aspect to consider is that for thermal processes and high temperatures, recycled HDPE is best suited as its melting point is around 120 to 130°C, ideal for recycled content with lower quality. Although the mechanical properties are likely to differ depending on the source of the recycled material as well as the processing techniques applied, the continuous advances in recycling technologies are improving the reliability of recycled HDPE in sustainable manufacturing applications.
How Do Recycled HDPE Pellets Compare to Virgin HDPE?
|
Key Point |
Recycled HDPE Pellets |
Virgin HDPE |
|---|---|---|
|
Price per Pound |
$0.82 (natural), $0.05 (color) |
$1.01 (North America avg.) |
|
Market Trend |
Rising demand for natural grades |
Slight price decrease (-1%) |
|
Flexibility in Use |
Limited for color; high for natural |
High for all applications |
|
Cost Influence |
Recycling complexity, demand variance |
Raw material and energy costs |
|
Seasonal Price Variation |
Higher in summer, lower in winter |
Minor seasonal fluctuations |
|
Supply Availability |
Limited post-consumer resin (PCR) |
Stable production levels |
|
Environmental Benefit |
Promotes recycling; sustainability goals |
Lower recyclability |

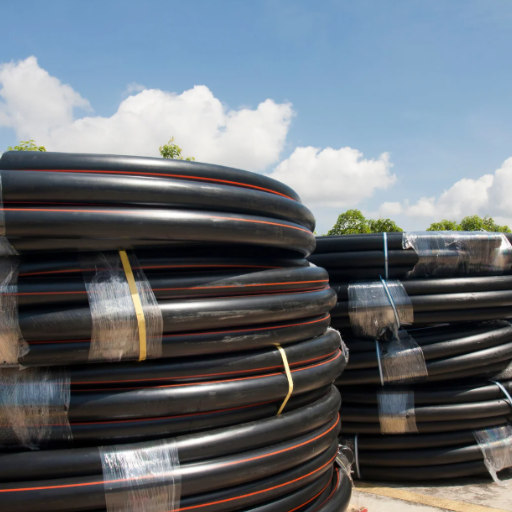

What is the Difference Between Virgin and Recycled HDPE?
Virgin HDPE comes from petrochemicals, which gives it uniform properties, high purity, and consistency. Recycled HDPE is derived from post-consumer or post-industrial plastic waste. Though recycled HDPE can suffer from quality issues due to its sourced material, it has improved significantly due to advancements in recycling technology. The major difference is in the sustainable impact—recycled HDPE helps minimize waste while conserving resources, and virgin HDPE consumes more raw materials and energy to produce.
What are the Properties of Virgin HDPE?
Virgin High-Density Polyethylene (HDPE) is outperforming other plastics in terms of durability, chemical resistance, and weight. Components of virgin HDPE have also not been subjected to harsh conditions previously, ensuring uniform quality. Its exceptional tensile strength and impact resistance enable remarkable performance in even the most demanding applications. Virgin grade HDPE also possesses strong thermal traits due to its high melting temperature and stability throughout a range of temperatures, as well as exceptional uniformity standards. This quality makes it a preferable choice in industries that depend on reliable, high-efficiency materials.
How Does the Mechanical Recycling Process Affect Quality?
Collecting, shredding, washing, melting, and re-extruding HDPE plastic entails its mechanical recycling. Some concerns involve the quality of the recycled material. One worrying aspect is polymer chains’ breakdown, weakening tensile strength, flexibility, and structural durability. Research indicates recycled HDPE suffers from a reduction in molecular weight and viscosity, severely affecting mechanical characteristics.
Contamination is yet another important problem that concerns the quality of HDPE recycled through mechanical means. Impurities such as leftover chemicals, dyes, and non-HDHPE polymers result in unpredictable performance and unreliable output. Studies show even traces of foreign polymers or other contaminants can substantially impact the physical properties of recycled HDPE, especially impact strength, thermal stability, and structural integrity.
More effective sorting and washing systems attempt to resolve these problems by improving output material purity. To further these outcomes, unrecycled HDPE is mechanically mixed with the output product to elevate overall material standards. To illustrate, incorporating 10-20% virgin HDPE into recycled batches improves the mechanical properties significantly. Despite achieving efficiency through mechanical recycling, outperforming industry standards for high-level application of recycled HDPE is an enduring obstacle.
What are the Environmental Impacts of Using Virgin vs Recycled Materials?
Employing unused resources, such as HDPE plastic has a larger impact on the environment than using recycled materials. The production of new materials is far more resource and energy-intensive, which in turn leads to greater emissions of greenhouse gases and damages the environment to a greater extent. In contrast to this, recycled materials greatly modify the raw material extraction process and the energy consumed throughout the production process, leading to waste reduction and a lower carbon footprint. Although I understand that in some cases, recycled materials do not have the same quality or performance as unused materials. Balancing these considerations is essential for more eco-friendly industrial operations.

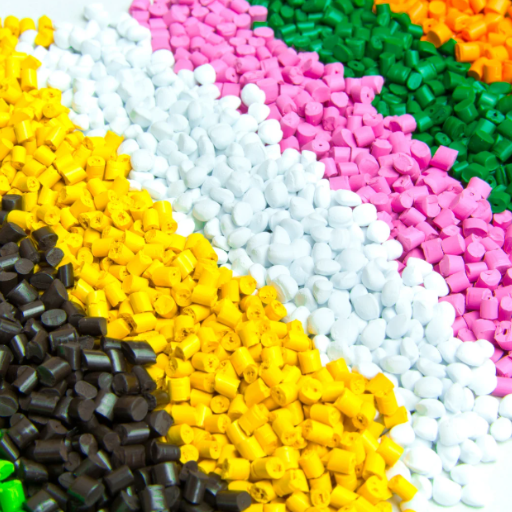

How Does the Recycling Process Impact Pellet Quality?
There are different ways in which the recycling process might change the quality of pellets. The material may be weaker, less durable, or less consistent due to repeated recycling. Hindered processes can further reduce the quality of the final product. Still, improved sorting processes and enhanced cleaning are recent breakthroughs in recycling technologies, which help address the problem of lower quality with higher quality of the pellets. Advanced methods in caring for and processing pellets are essential in retaining expected performance levels.
What are the Contaminants in the Recycled HDPE?
Recycled HDPE (High-Density Polyethylene) commonly contains contaminants that greatly decrease its properties and potential applications. Common contaminants comprise the residual labels, adhesives, and inks from packaging that were not completely removed during the processing steps. The material can also contain organic residues, such as food remnants or oils, which can result in odor or discoloration. Also problematic is the inclusion of PVC and PET plastics, which can unintentionally merge with HDPE during collection and sorting. These mixed plastics may impact the melting temperature and mechanical strength of HDPE.
Additionally, heavy metals and chemical additives from previous uses of HDPE can also be contaminants. Some materials, like flame retardants or stabilizers, are incompatible with certain recycled uses of HDPE, leaving the chances of system performance degradation and safety risks. Research shows that uncontrollably sorted or contaminated material up to 15% can diminish the recyclability and HDPE product strength. Therefore, sorting technologies, including NIR (near infrared) scanners and washing technologies, need to improve for harmful contaminant-controlled processes to enhance the quality of recycled HDPE.
How is the Quality of Recycled Materials Assessed?
Recycled materials like HDPE undergo physical, chemical, and technological testing to verify purity, strength, and quality for reuse. Spectroscopy techniques such as FTIR and NIR scanning are employed to identify molecular-level contaminants and quantify them. It is also common practice to carry out Melt Flow Index (MFI) testing of the material, as the MFI indicates a material’s viscosity, processing behavior, and application possibilities.
Moreover, sorting materials with automated systems is improving the material quality in the recycling process. This paper also notes that modern sorting plants, which have air classifiers, optical sorters, and electrostatic separation technology, achieve material purity of over 95% when dealing with post-consumer plastics. The APR, for example, sets certain guidelines defining the minimum attainable standards for structural and environmental safety, called the compliance standards. These measures give recyclers the means to provide high-performance materials for sustainable uses, increasing their value.
What are the Properties of Virgin and Recycled HDPE Pellets?
Virgin HDPE pellets have high strength, durability, and good aesthetic appeal. Virgin HDPE also has consistent uniform melt flow which enables reliable processing during manufacturing. In addition, these pellets are uncontaminated, resistant to chemicals and environmental stress, and contain no value-deteriorating fillers.
Recycled HDPE pellets might not have the same uniform quality as non-recycled ones, but they do retain most of the positive aspects. Improved recycling technologies now allow for better performance of the recycled pellets, making them strong, durable, and versatile for various applications. Furthermore, their positive environmental impact means they are a valuable resource for eco-friendly initiatives.
How Do Tensile and Flexural Strength Properties Compare?
Tensile strength and flexural strength are two important polymer testing metrics that impact the overall effectiveness of materials such as HDPE (High-Density Polyethylene). The term tensile strength describes how a material resists to breaking under forces which attempt to pull it apart. For HDPE, the value of tensile strength is in the range of 20-37MPa depending on whether the material is virgin or recycled.
Flexural Strength, on the other hand, describes the ability of a material to resist bending forces perpendicular to the longitudinal axis of the beam. For HDPE, this number is usually in the range of 15-25 MPa. Recycled HDPE may show slight variations compared to virgin material, but modern recycling methods have been very effective at minimizing differences to ensure consistent performance in most, but not all, applications.
Knowing the limits of these two properties simultaneously helps greatly with the design and selection of components. For example, part designs that involve heavily reinforced structures, such as strong aporting or bracing in heavy-duty piping, tend to need higher tensile strength. On the other hand, decking or flooring materials need better flexural strength. Manufacturers can now adjust these parameters to meet expectations because of advanced testing and new recycling technologies, thus making HDPE more dependable and adaptable.
What are the Thermal Properties of Each?
The ability to perform optimally under varying conditions is dependent on the different thermal properties of materials such as HDPE. The melting point of HDPE is between 120°C and 135°C, which makes it suitable for use in most ares with moderate heat resistance. Besides, it also possesses an exceptional insulating capability which aids in minimizing heat transfer. Furthermore, its low thermal conductivity means that HDPE will retain its shape when subjected to thermal stress, although long-term exposure to intense heat may lead to distortion or damage.
What are the Mechanical Properties of Recycled HDPE?
Recycled High-Density Polyethylene (HDPE) is a flexible material with a wide range of applications due to its mechanical properties, although these may differ slightly from those of virgin HDPE because of the recycling process. Generally, the tensile strength of recycled HDPE is 20 to 30 MPa, which, while lower than that of virgin HDPE, is adequate for many applications. Depending on the purity and quality of the recycled material, its impact strength—an important factor for determining resistance to sudden forces—frequently remains, on average, lower than and blended with virgin HDPE.
The density of recycled HDPE is fairly consistent with virgin HDPE, both sitting at approximately 0.94 to 0.96 g/cm³. However, some variability may be introduced from contaminants. The material’s elongation at break changes with respect to its virgin version, leading to reduced flexibility. Nevertheless, recycled HDPE’s excellent resistance to abrasion, chemicals, UV degradation, and overall weathering makes it an appealing option for outdoor applications as well as for packaging. Sustainability efforts are enhanced as the recycling technology improves to further increase the mechanical properties of recycled HDPE in relation to virgin materials.

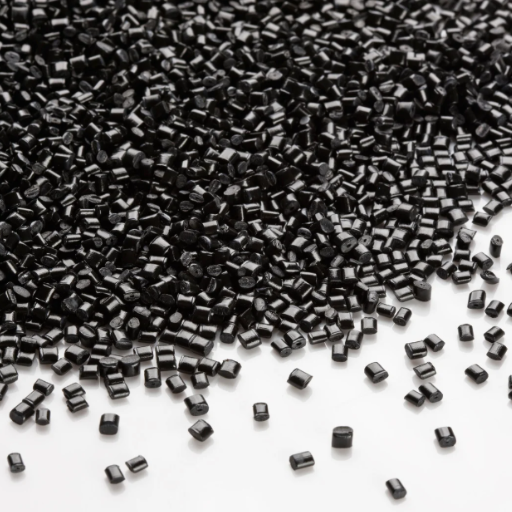

Why Choose Recycled Plastic Pellets?
Recycled plastic pellets reduce costs while serving as a sustainable substitute for virgin plastics. Additionally, they reduce waste, conserve natural resources, and mitigate environmental damage associated with manufacturing. Moreover, these pellets are dependable in packaging, construction, consumer goods, and other industries, proving their value for businesses focused on sustainability.
What are the Benefits of Using Recycled HDPE?
Recycling High-Density Polyethylene (HDPE) comes with distinct merits that are beneficial to society and businesses. Its most notable perk is the drastic plastic waste reduction achieved through extracting value from discarded products such as milk jugs, detergent bottles, and various containers. Repurposing this waste enables industries to divert millions of tons of plastic from landfills and oceans annually.
In addition, the production of recycled HDPE consumes 88% less energy than virgin HDPE. This particular difference in energy consumption not only lowers manufacturing costs, but it further diminishes greenhouse emissions, while aiding in a company’s green initiative. Moreover, recycled HDPE plastic retains significant amounts of durability, strength, and versatility, which makes it suitable for piping, containers, and outdoor furniture.
Ever-increasing consumer demand for eco-friendly products is another significant perk. Using recycled HDPE improves brand perception recycled plastics and targets customers interested in sustainable initiatives. Recycled HDPE is highly respected as a primary, responsible, and efficient resource due to its ability to withstand chemicals, UV light, and weather, in addition to boasting high recyclability.
How Does Using Recycled Pellets Contribute to Sustainability?
Reusing plastic pellets saves the environment by reducing carbon burn off and conserving oil and gas reserves. It is estimated that for every ton of recycled plastic used, an additional 1.5 tons is saved from being burned, lowering a brand’s carbon footprint. This also saves oil and natural gas , which are needed to make new plastic.
Transforming plastic waste into recyclable spools helps reduce landfill waste. Industries help seize millions of tonnes of waste that are either dumped or drained into oceans by changing a portion of the 400 million tonnes of plastic produced each year into reusable pellets.
The adoption of recycled spools aids industries by cutting down energy consumption. Manufacturers of recycled plastic use significantly less energy, with some estimates stating it can be up to 88%, sans compared to basing virgin plastics. The provided reasons lucidly illustrate the importance of recycled pellets in nurturing circular economies and promoting sustainability in various industries.
What Applications Suit Recycled and Virgin HDPE?
- Plastic Bottles
Plastic bottles used for milk, juice, and even detergents are made out of both virgin and recycled HDPE. Containers which are designed for non-food items, tends to possess more recycled HDPE because additional sustainability is required. Virgin HDPE ensures clarity as well as durability.
- Pipes and Conduits
High pressure pipes tend to be composed out of virgin HDPE. This is simply because of its strength and reliability. Lower quality products such as drainage pipes and irrigation systems is often made out of recycled HDPE because the pressure is not as high.
- Packaging Materials
R pods are made out of recycled HDPE whereas shipping crates as well as industrial grade pallets are composed out Virgin HDPE. This is because these products need to be food safe in nature. Recycled HDPE can be utilized without worrying about stringent safety standards.
- Construction Materials
Recycled HDPE can be used where sustainability is a virtue, such as in construction for plastic lumber, barriers and geomembrane liners. Its outdoor environmental stress durability makes it unique.
- Automotive Components
In the automotive industry, both virgin and recycled HDPE get used for interior panels, fuel tanks and bumpers. The less critical parts that do not need to be strong tend to be made out of recycled HDPE whereas the important parts are constructed using virgin HDPE.
Reference Sources
- Blending Recycled HDPE with Virgin HDPE3:
- Key Findings: Blending virgin HDPE with recycled HDPE improves tensile strength, modulus, and fatigue resistance. Higher virgin HDPE content reduces crack propagation and heat generation during fatigue testing. Both powder and extrusion mixing methods were effective, though powder mixing showed slightly better fatigue performance.
- Methodology: The study used tensile and fatigue tests on blends with varying virgin-to-recycled HDPE ratios. Thermal and morphological analyses were also conducted to assess material properties.
- Evaluation of Tensile and Flexural Strength for Pipe Applications4:
- Key Findings: Virgin HDPE exhibited superior tensile and flexural strength compared to recycled HDPE. Blends with up to 30% recycled HDPE maintained acceptable mechanical properties for pipe fittings, but higher recycled content significantly reduced strength.
- Methodology: Tensile and flexural tests were performed on injection-molded samples with different virgin-to-recycled HDPE ratios.
- Mechanical Properties of Virgin and Recycled HDPE for Sewer Systems5:
- Key Findings: Recycled HDPE showed reduced mechanical performance due to contaminants and degradation. However, improved sorting and recycling processes could enhance its properties, making it suitable for non-pressure applications like sewer pipes.
- Methodology: The study used mechanical testing, thermal analysis, and molecular characterization to compare virgin and recycled HDPE.
Frequently Asked Questions (FAQs)
Q: What are the mechanical properties of virgin high-density polyethylene (HDPE) compared to recycled HDPE?
A: Virgin HDPE typically offers superior flexural and tensile strength, making it suitable for demanding applications. In contrast, recycled HDPE may have slightly reduced mechanical properties due to the recycling process, but advancements in recycling technology have improved the quality and usability of recycled polymers significantly.
Q: How does the recycling of high-density polyethylene (HDPE) contribute to reducing plastic waste?
A: Recycling HDPE helps reduce plastic waste by reprocessing used plastic materials into new plastic products. This process minimizes the demand for virgin resin and decreases the volume of plastic waste in landfills, thus closing the loop in the plastic life cycle.
Q: What are the differences between recycled and virgin HDPE in terms of chemical and thermal properties?
A: Virgin HDPE generally exhibits more consistent chemical and thermal properties compared to recycled HDPE. However, recycled HDPE can still perform adequately in many applications, especially when blended with virgin polymers to enhance certain characteristics.
Q: Can recycled high-density polyethylene be used in pipe fitting applications?
A: Yes, recycled HDPE can be used in pipe fitting applications, although it is often mixed with virgin HDPE to ensure the mechanical properties meet industry standards. The use of recycled materials in such applications helps in the reduction of plastic waste.
Q: What are the benefits of using recycled polypropylene (PP) in the plastic industry?
A: Using recycled PP in the plastic industry helps reduce the environmental impact by conserving resources and reducing energy consumption associated with producing new plastic materials. This contributes to a more sustainable production cycle and supports plastic recycling initiatives.
Q: How do recycled polymers like recycled PET and recycled PP compare to virgin polymers in terms of use in plastic products?
A: Recycled polymers such as recycled PET and recycled PP can be used to produce various plastic products, often with comparable performance to those made from virgin polymers. They are particularly beneficial in applications where the highest mechanical strength is not the primary requirement.
Q: What role does post-consumer recycled HDPE play in the production of new plastic products?
A: Post-consumer recycled HDPE is used to produce new plastic products, reducing the need for virgin HDPE. This not only conserves resources but also supports the sustainability of the plastic industry by promoting the recycling of high-density polyethylene.
Q: Are there specific applications where virgin HDPE is preferred over recycled HDPE?
A: Virgin HDPE is often preferred in applications where high mechanical strength and consistent chemical and thermal properties are crucial, such as in food-grade containers or medical supplies. The characteristics of virgin HDPE make it suitable for these demanding uses.
Q: How does the blending of recycled and virgin HDPE affect the final product?
A: Blending recycled with virgin HDPE can enhance the mechanical and aesthetic properties of the final product. This practice helps improve the quality of recycled plastic materials, making them suitable for a broader range of applications while also reducing the reliance on virgin polymers.
